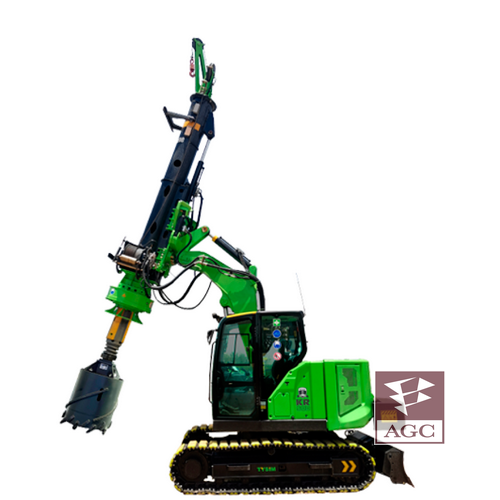

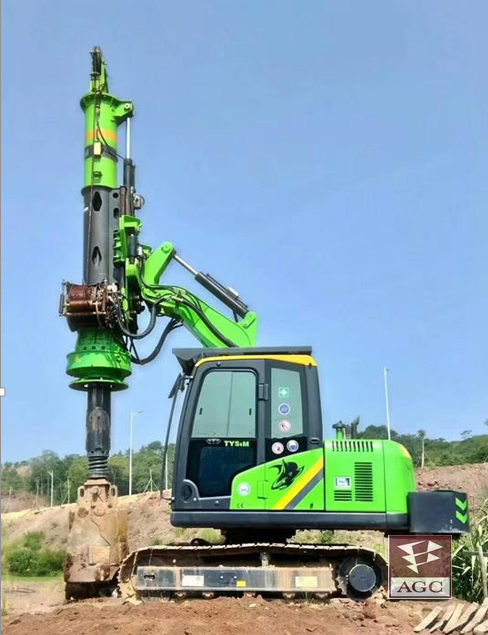

TYSIM KR50A-10 Drilling Rig
Rotary drilling rig with integrated Kelly Bar.
Maximum drilling diameter: 1200 mm.
Maximum drilling depth: 10 m.
Weight in standard configuration, without drilling tool: 13 tons.
Manufacturer – TYSIM Piling Equipment Co. Ltd – China.
TYSIM KR50A-10 Drilling Rig for Deep Foundation
We are the official representative of TYSIM Piling Equipment Co. Ltd company in Canada.

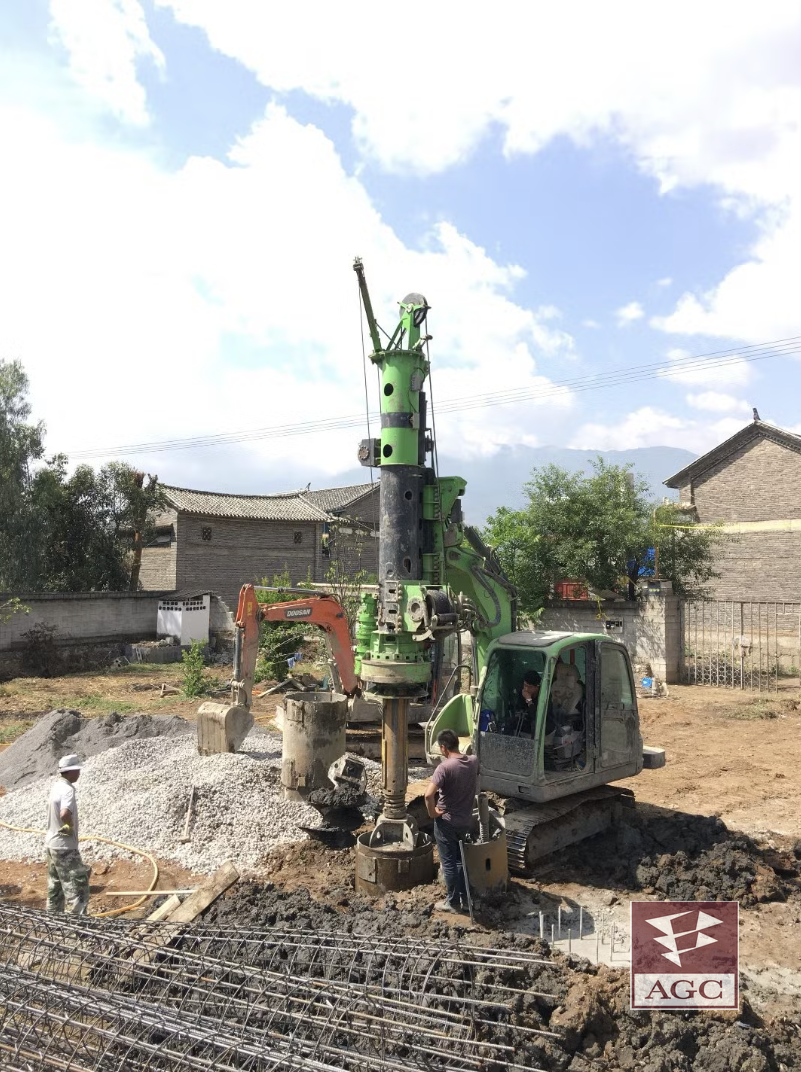

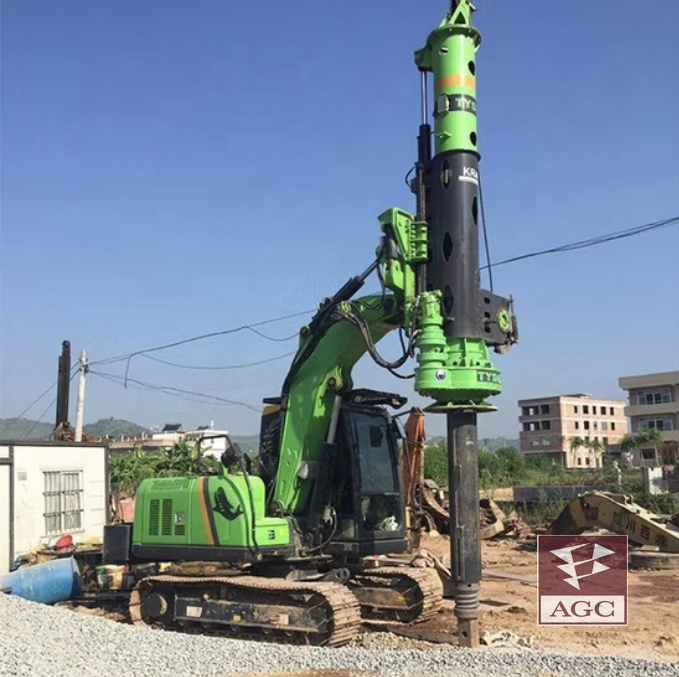

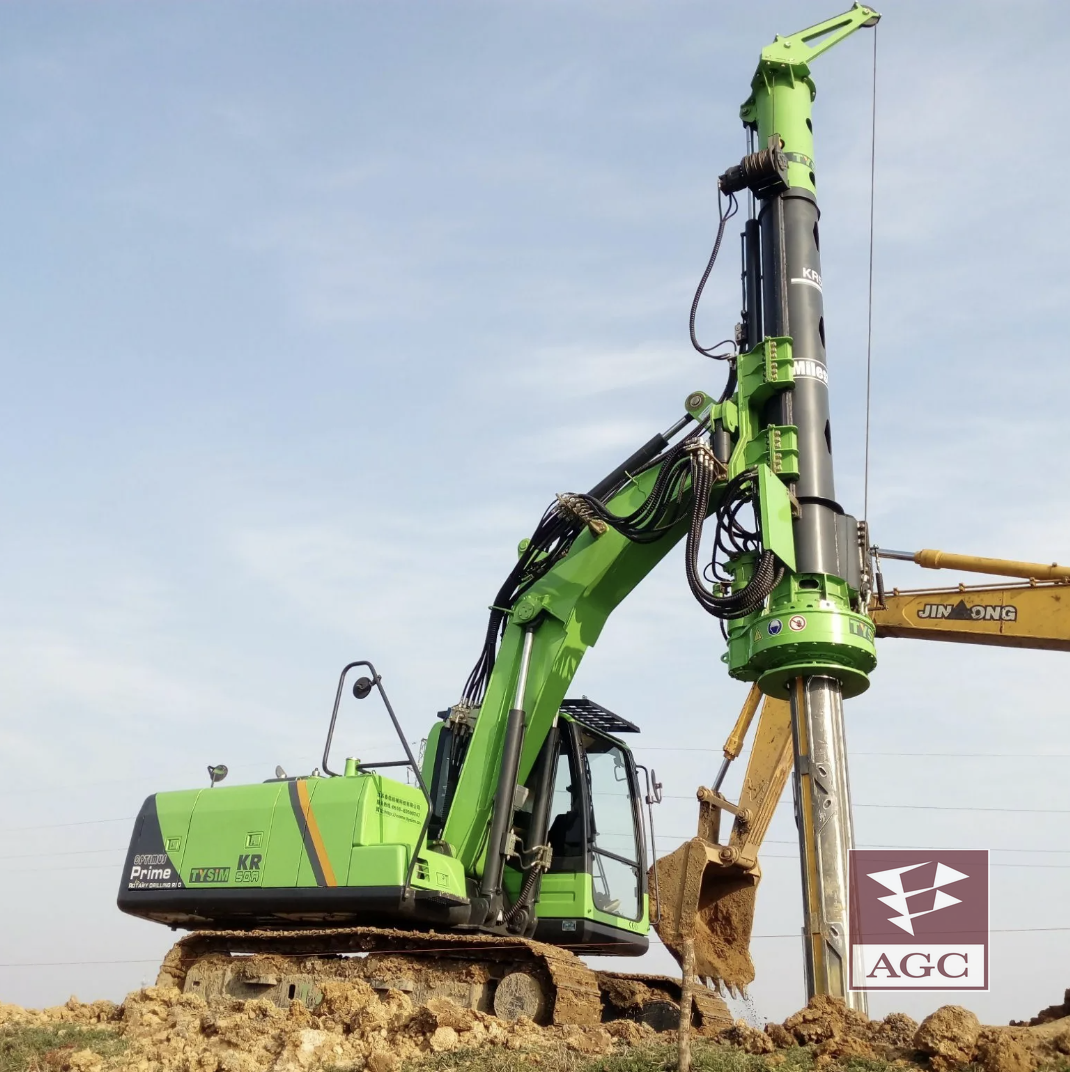

The KR50-A10 Drilling Rig is widely used in Deep Foundation work for cast-in-place concrete piles in construction projects, such as highways, railways, bridges, ports, and high-rise buildings.
Drilling with blocking-type kelly bars up to 10 m.
Available for sale. For details, please contact our specialists.
- Max. drilling diameter:1200 mm
- Max. drilling depth:10 m

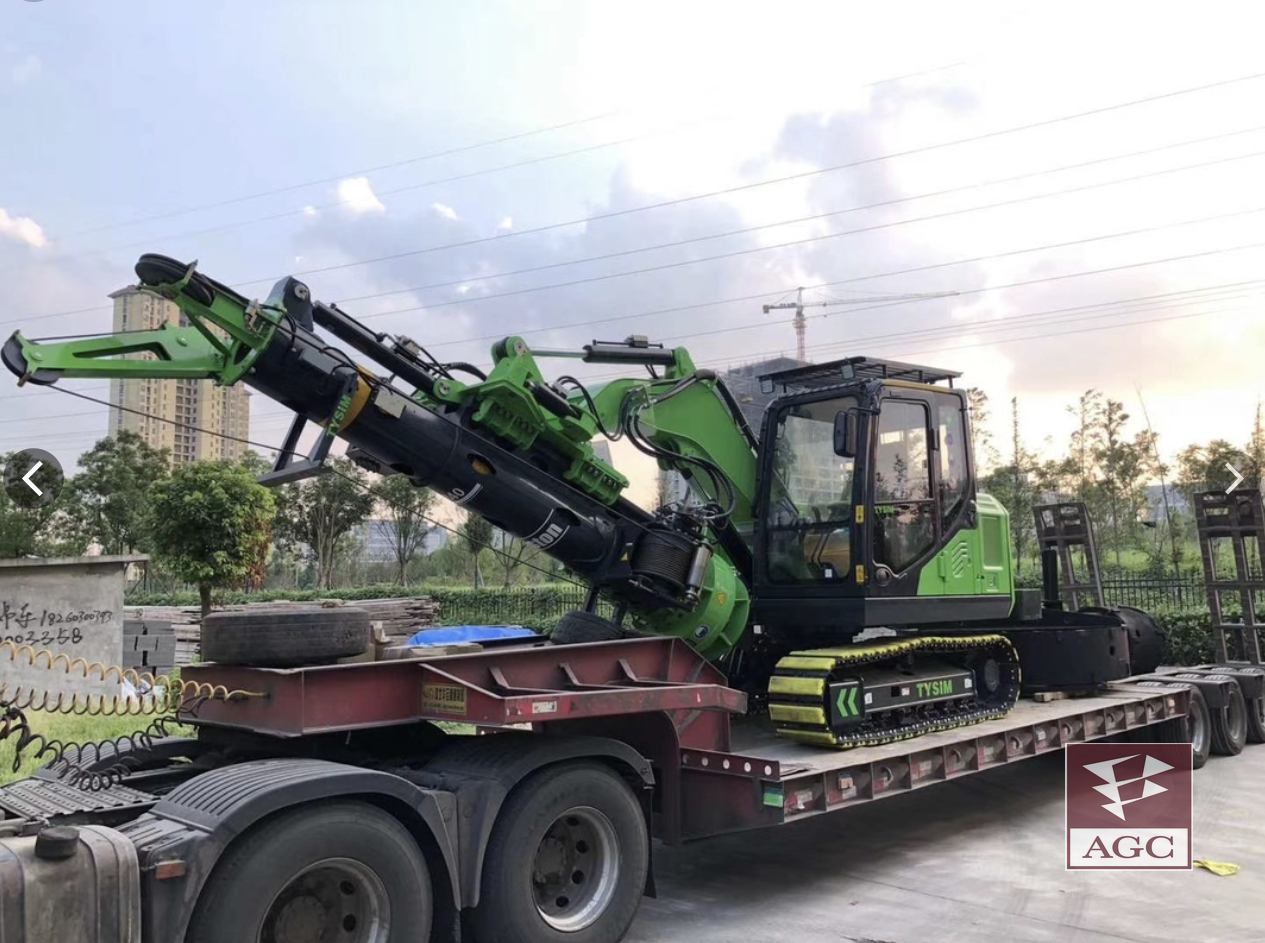

- Transport size:L=7.160 mm, W=2.300 mm, H=3.014 mm; 13 t
- Max. torque / speed:32-42 kNm, 7-30 rpm
- Crowd system down / up:70 kN; 600 mm
- Main winch:45 kN
