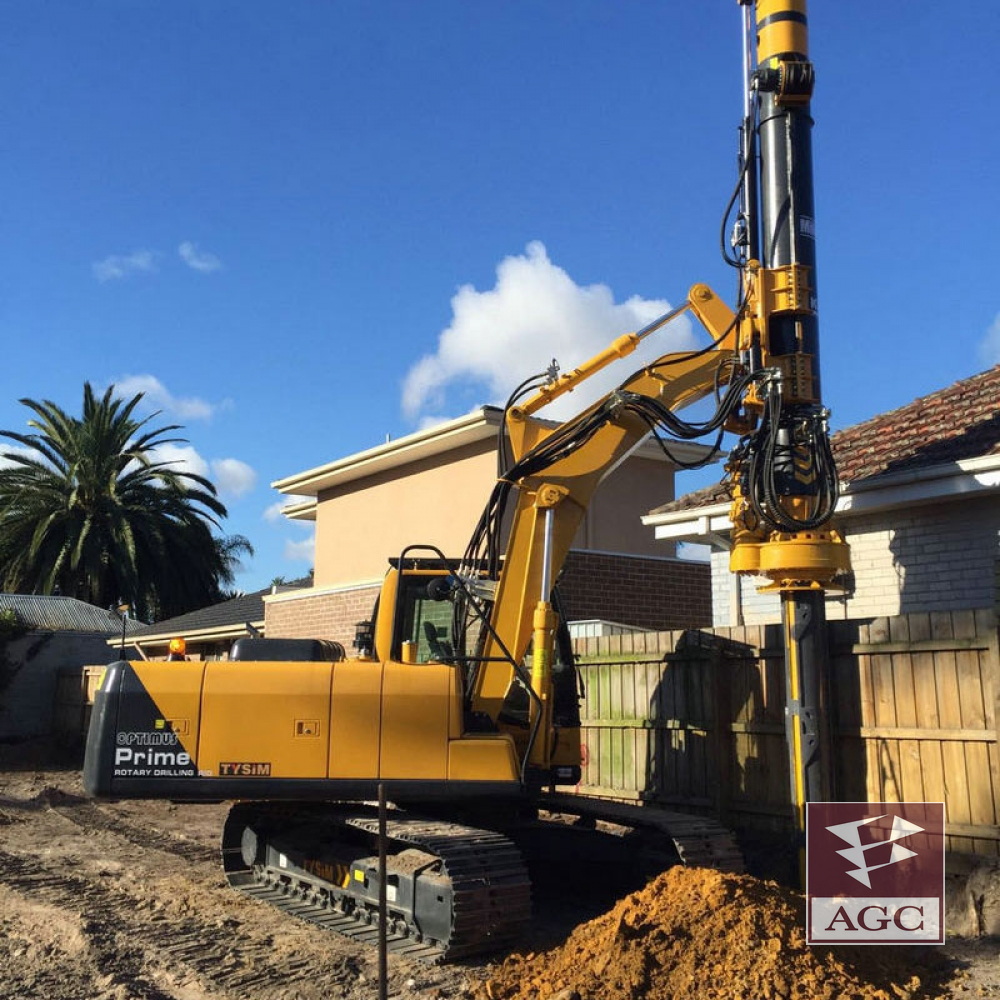

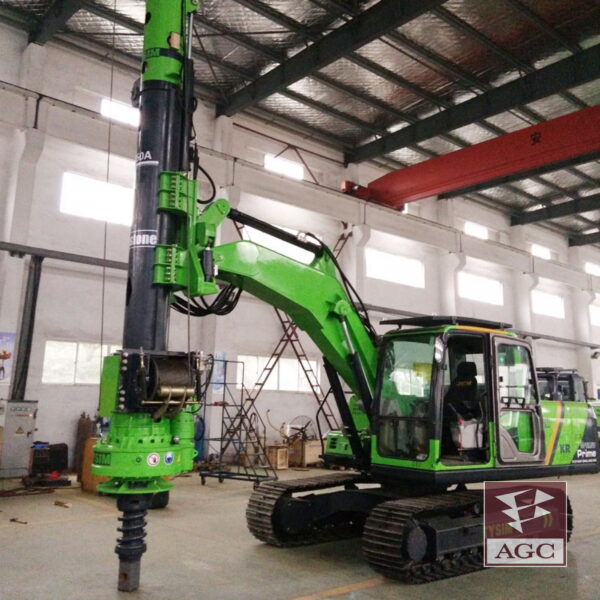

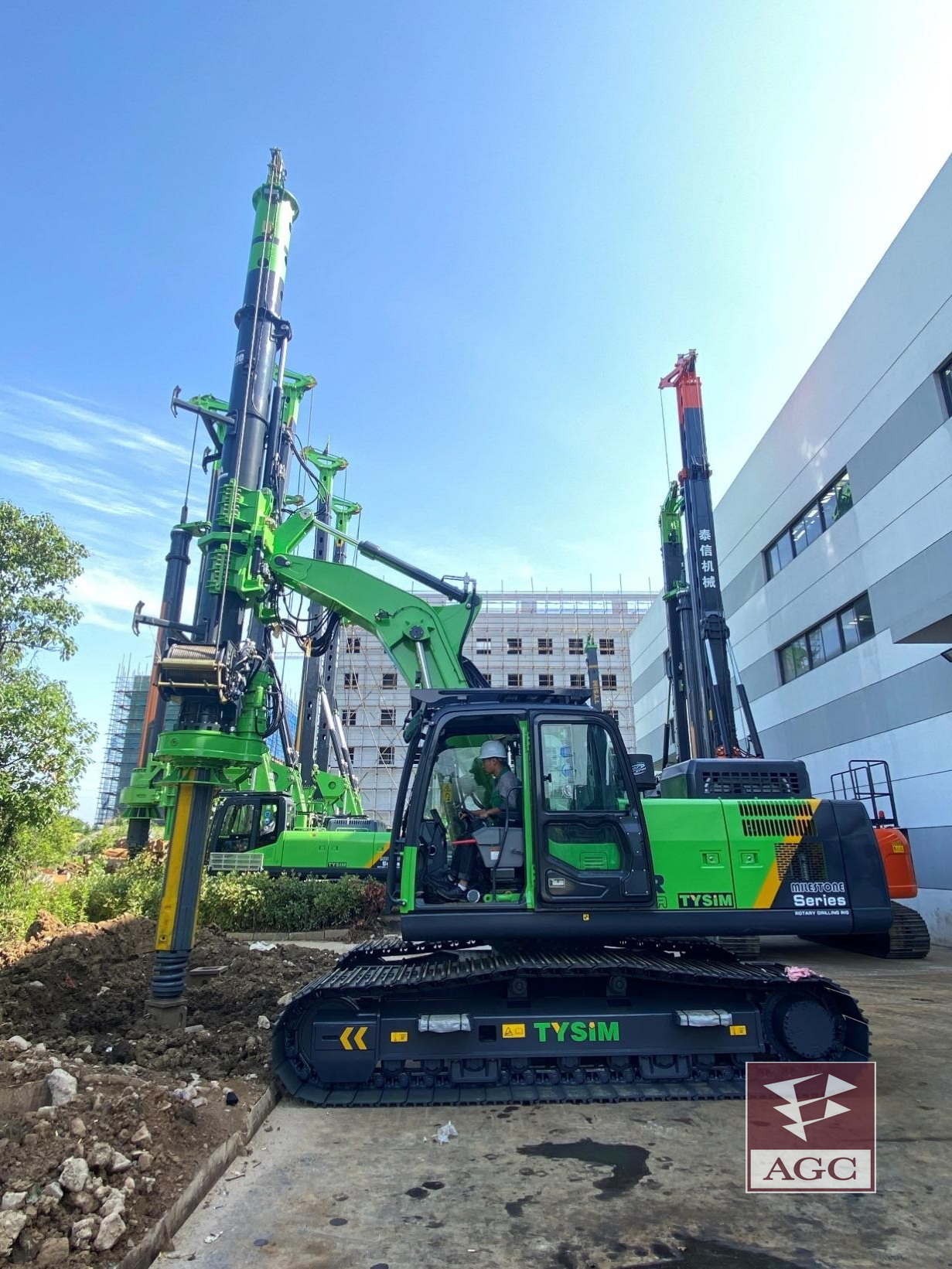

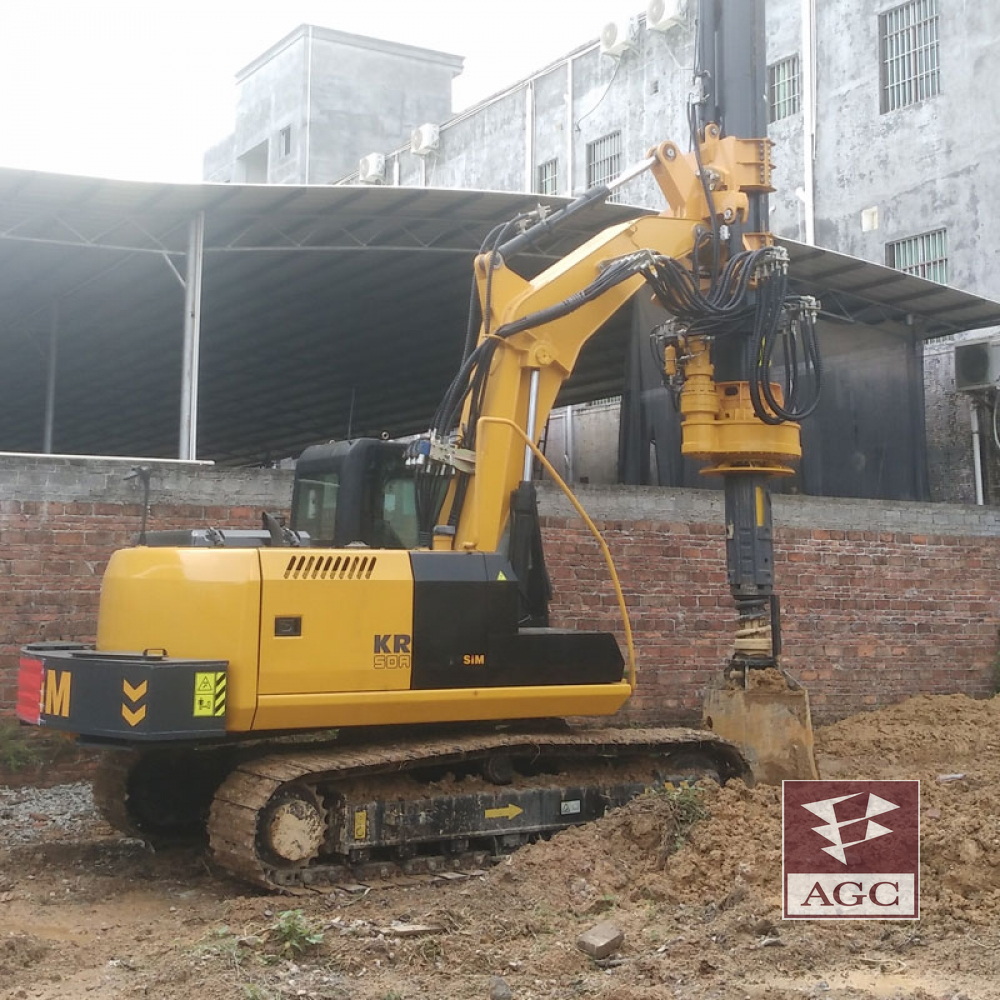

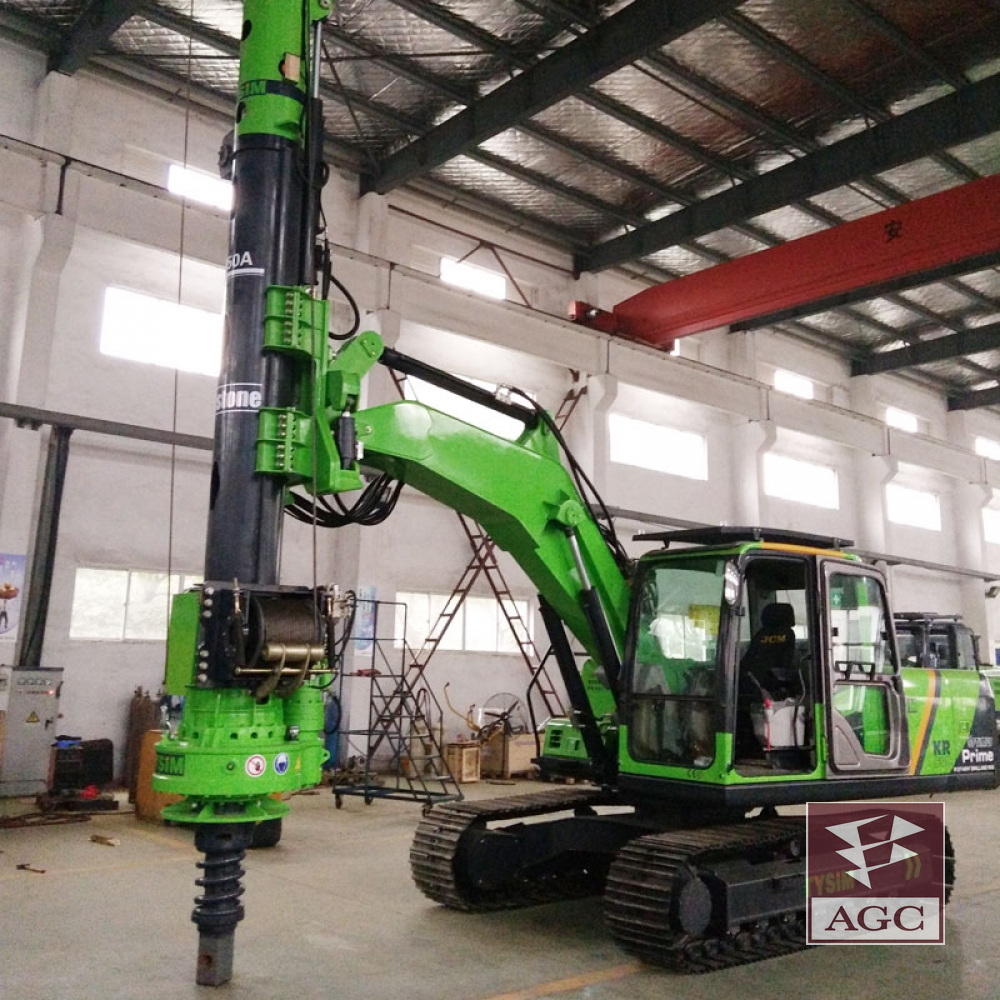

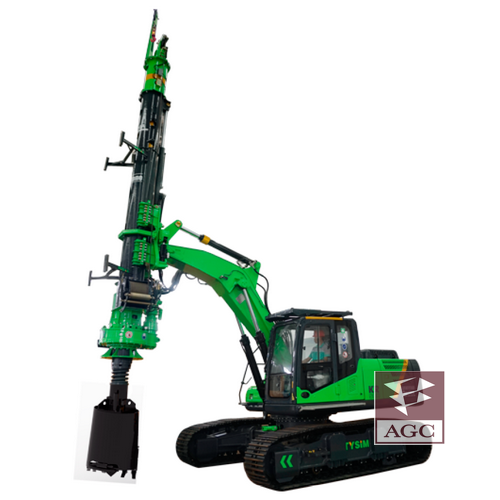

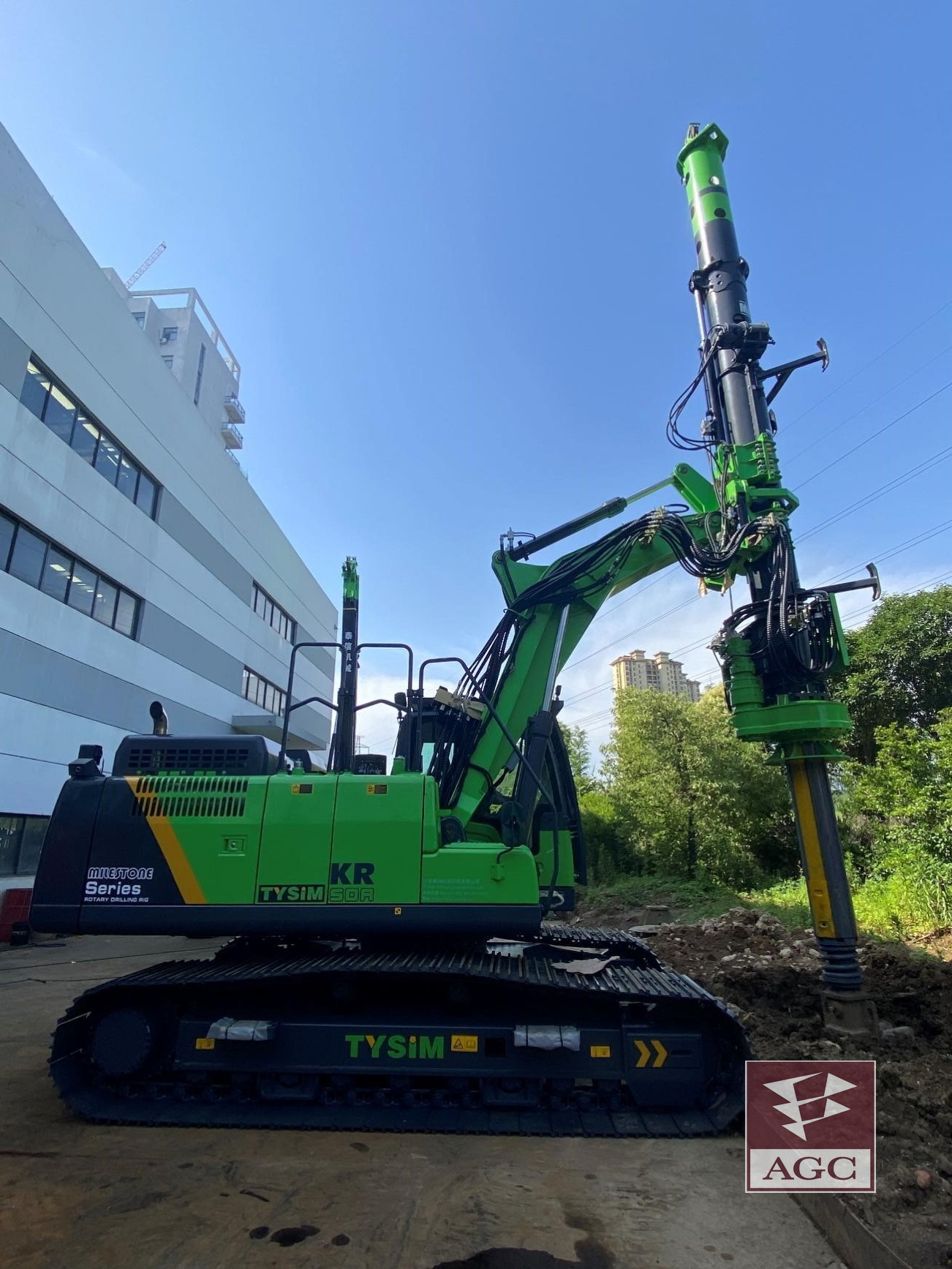

TYSIM KR50A-20 Drilling Rig
Rotary drilling rig with integrated Kelly Bar.
Maximum drilling diameter: 1200 mm.
Maximum drilling depth: 20 m.
Weight in standard configuration, without drilling tool: 25 tons.
Manufacturer – TYSIM Piling Equipment Co. Ltd – China.
TYSIM KR50A-20 Drilling Rig Drilling Rig for Deep Foundation
We are the official representative of TYSIM Piling Equipment Co. Ltd company in Canada.

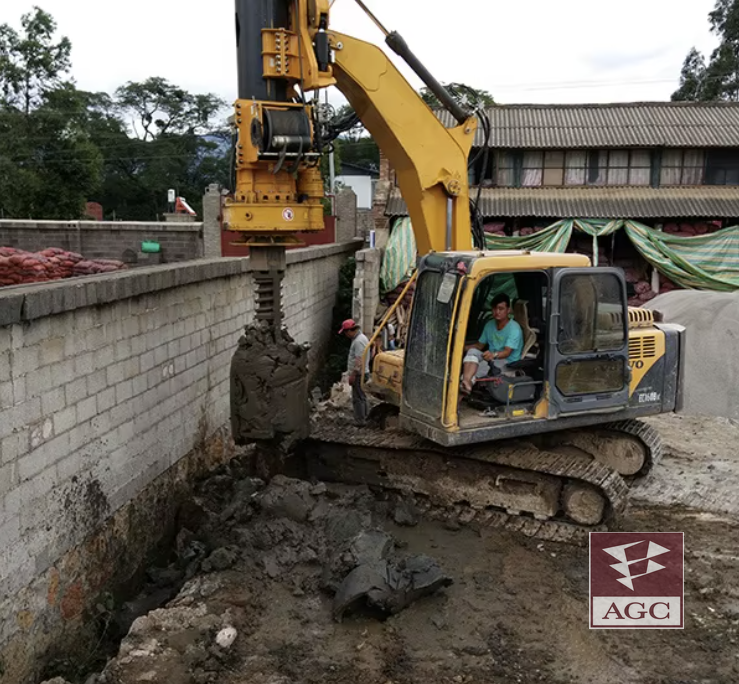

The KR50-A20 Drilling Rig is widely used in Deep Foundation work for cast-in-place concrete piles in construction projects, such as highways, railways, bridges, ports, and high-rise buildings.
Drilling with blocking-type kelly bars up to 20 m.
Available for sale. For details, please contact our specialists.
- Max. drilling diameter:1200 mm
- Max. drilling depth:20 m

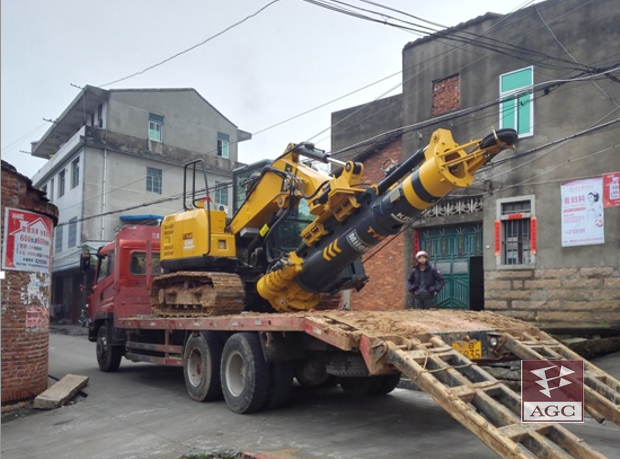

- Transport size:L=12.850 mm, W=2.800 mm, H=3.040 mm; 25 t
- Max. torque / speed:50 kNm / 7-60 rpm
- Crowd system down / up:1100 mm, 70 kN / 90 kN
- Main winch:65 kN
- Auxiliary winch:10 kN
