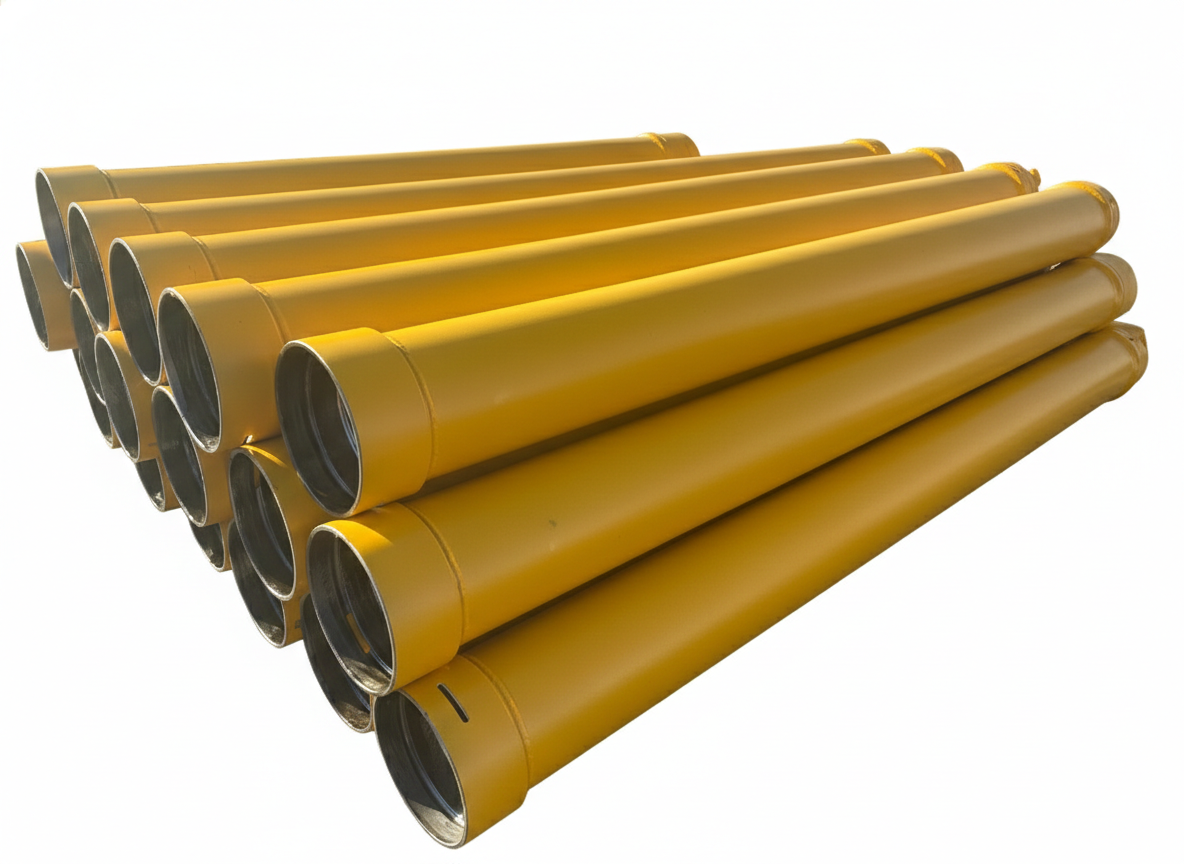

Tremie Pipes
Wire Cable Tremie Pipes
| Pipe OD (mm) | Wall Thickness (mm) | Weight / 1m (kg) |
|---|---|---|
| 219 | 4.5 / 4.75 / 6.0 / 6.75 | 40 |
| 245 | 4.5 / 4.75 / 6.0 / 6.75 | 44 |
| 260 | 3 | 48 |
| 273 | 4.5 / 4.75 / 6.0 / 6.75 | 48 |
| 300 | 3 | 65 |
| Joint dimensions and other sizes available on request | ||
Threaded Tremie Pipes
| Pipe OD (mm) | Wall Thickness (mm) | Weight / 1m (kg) |
|---|---|---|
| 219 | 3 | 30 |
| 245 | 3 | 31 |
| 260 | 3 | 32 |
| 300 | 3 | 40 |
| Joint dimensions and other sizes available on request | ||
Tremie pipes are used for controlled concrete placement in bored piles and deep foundation drilling, enabling reliable concreting below water, slurry, or unstable ground conditions while minimizing segregation and contamination.
Tremie pipes are manufactured with wire-cable coupling or threaded connections. Standard diameters typically range from 219 mm to 300 mm, with sizing selected based on borehole diameter and the internal diameter of the reinforcement cage to ensure smooth concrete flow and efficient installation.
Pipe sections are supplied in standard lengths from 2 m to 6 m, allowing flexible configuration for various pile depths and site conditions.
Custom diameters, wall thicknesses, and lengths are available upon request, providing tailored solutions for specific project requirements and contractor preferences.
- Diameter:219 - 325 mm
- Length:2000 - 6000 mm
- Connection type:Wire cable or thread
