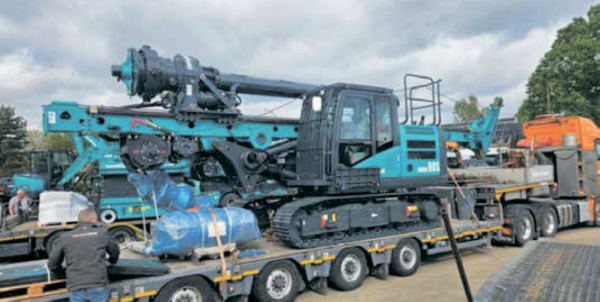

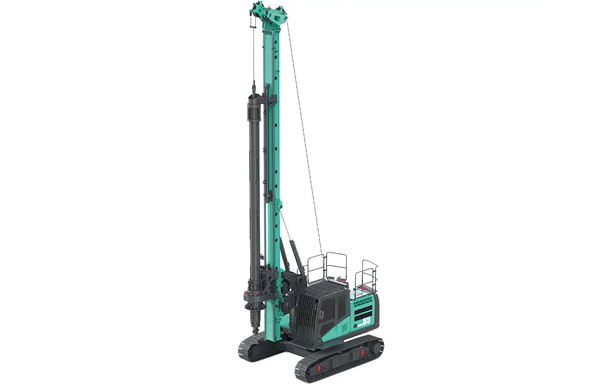

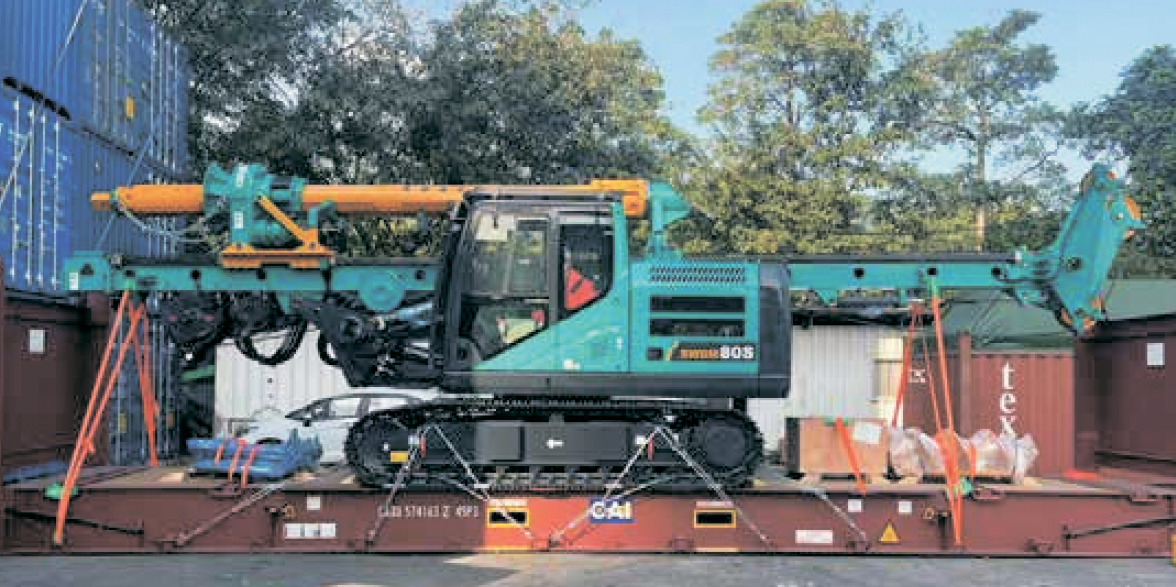

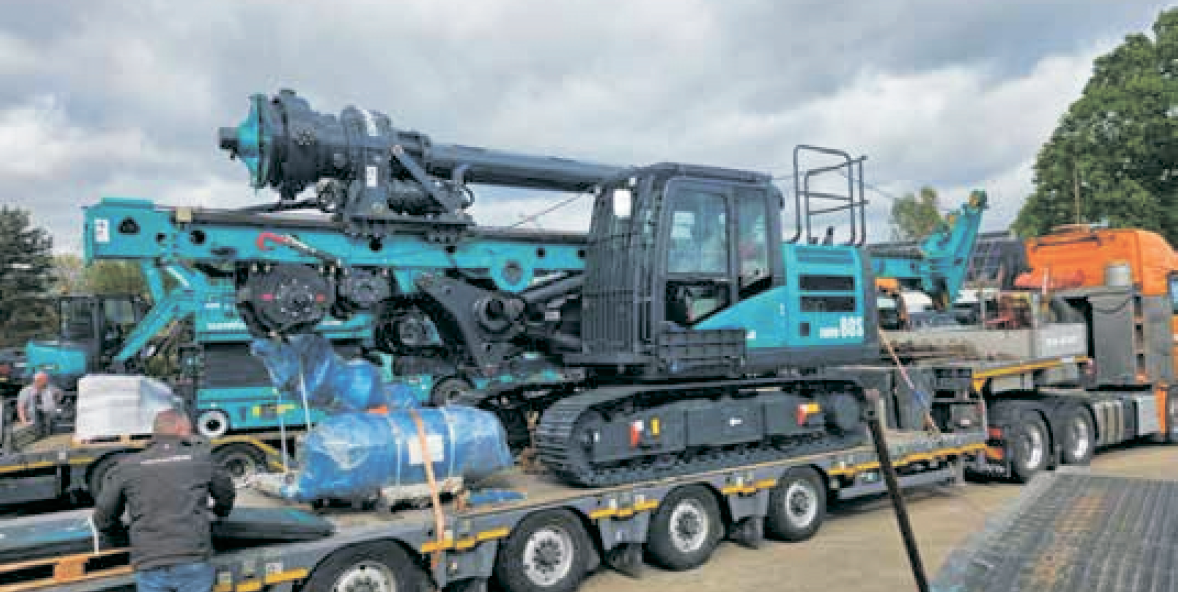

Sunward SWDM85 Rotary Drilling Rig
- Max. Torque: 80 kNm
- Max. Depth: 33 m
- Max. Drilling Diameter: 1200 mm
- Winch / Cylinder Crowd System
- CFA
The Sunward SWDM85 is a high‑performance rotary drilling rig engineered for construction and foundation applications where compact size, reliability, and productivity matter.
Designed to operate in restricted job sites and small-scale foundation work, the SWDM85 delivers up to 80 kNm maximum torque, 33 m drilling depth and a 1200 mm maximum drilling diameter for CCS and 1,000 mm for WCS. Built for versatility, it supports LDP and CFA drilling configurations, offers quick setup, and features reliable hydraulics and premium components for long‑term durability and lower operating costs. With superior mobility, flexible control systems, and excellent energy efficiency, the Sunward SWDM85 ensures fast, precise drilling performance across industrial and civil construction projects.
- Max. drilling diameter:1200/1000 mm
- Max. drilling depth:33 m
- Max. torque:80 kNm
- Rotary rotation speed:8-35 rpm
- Engine model:Cummins F3.8
- Engine Stage III:93 kW @ 2200 rpm
- Engine Stage V:90 kW @ 2200 rpm
- Main winch:90 kN, 62 m/min
- Auxiliary winch:30 kN, 50 m/min
- Kelly Bar Locking / Friction:JS325/ MZ325
- Width ret/ext crawlers:2500/3400 mm
- Max. height:12.9 m
- Operating weight:28 t
