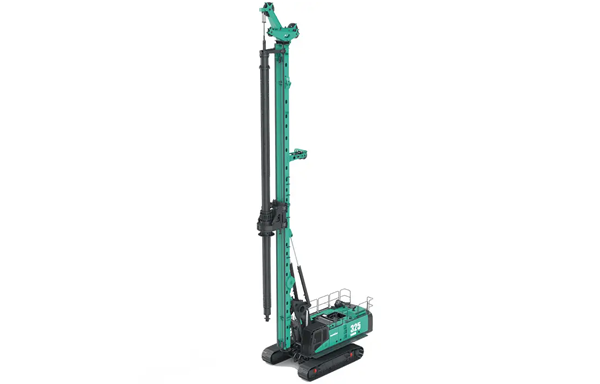

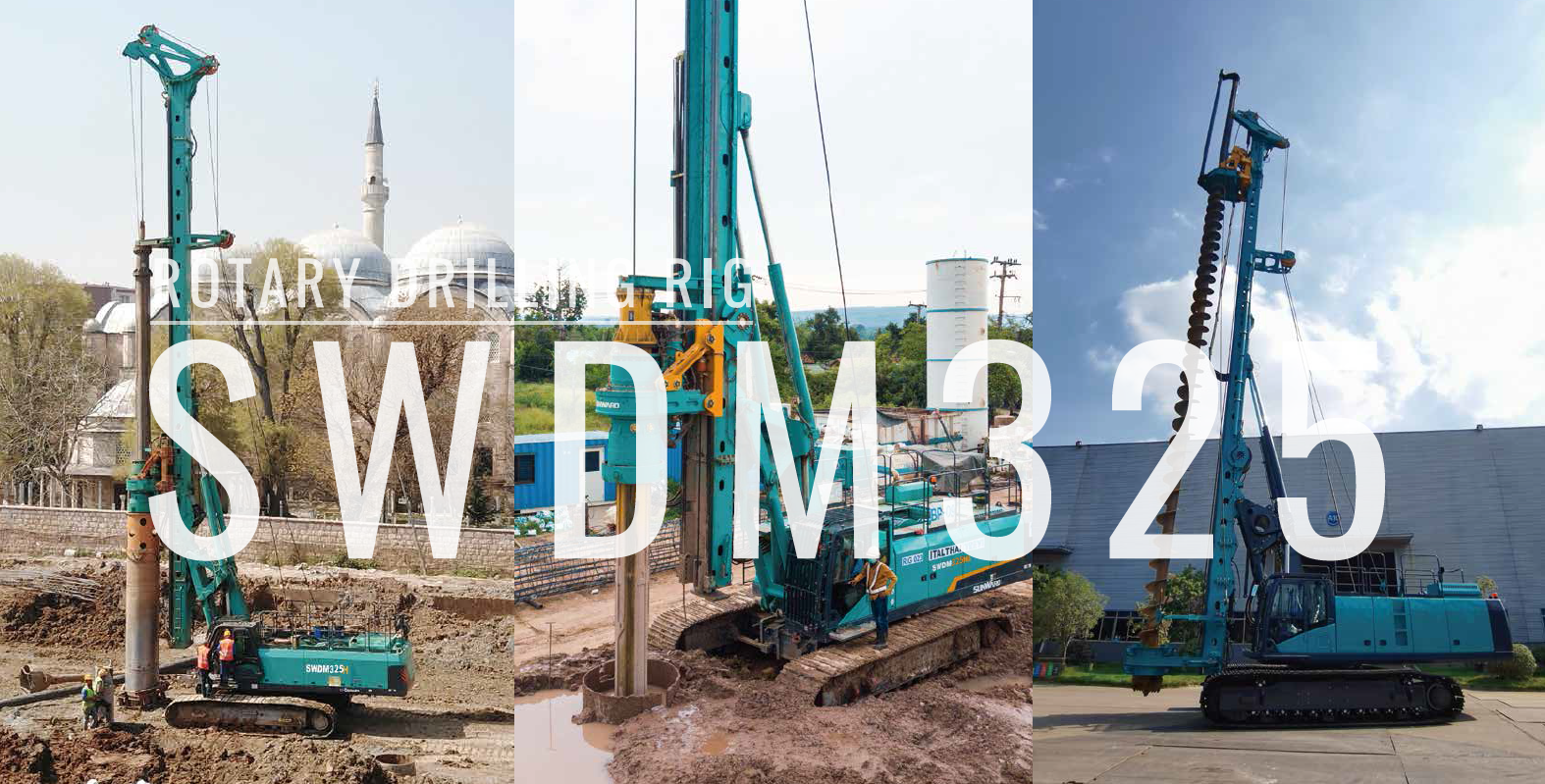

Sunward SWDM325 Rotary Drilling Rig
- Max. Torque: 330 kNm
- Max. Depth: 94 m
- Max. Drilling Diameter: 2500 mm
- Winch / Cylinder Crowd System
- CFA
The Sunward SWDM325 is a heavy-duty rotary drilling rig designed for large-scale foundation construction and high-capacity piling operations. It delivers maximum torque of 330 kNm, providing the power required for oversized piles and complex ground conditions. The SWDM325 supports a maximum drilling depth of up to 94 m and a maximum drilling diameter of up to 2,500 mm for CCS and up to 2,300 for WCS.
Equipped with an advanced electronic control system, a reinforced mast, and a heavy-duty undercarriage, the SWDM325 ensures exceptional stability, precise drilling control, and high operational reliability. Its robust design makes it an ideal solution for bridge foundations, industrial facilities, and major infrastructure projects.
- Max. drilling diameter:2500/2300 mm
- Max. drilling depth:94 m
- Max. torque:330 kNm
- Rotary rotation speed:6-32 rpm
- Engine model:Cummins X12
- Engine Stage III:277 kW @ 2100 rpm
- Engine Stage V:321 kW @ 2100 rpm
- Main winch:320 kN, 70 m/min
- Auxiliary winch:110 kN, 65 m/min
- Kelly Bar Locking / Friction:JS508 / MZ508
- Width ret/ext crawlers:3000/4600 mm
- Max. height:25.3 m
- Operating weight:107 t
