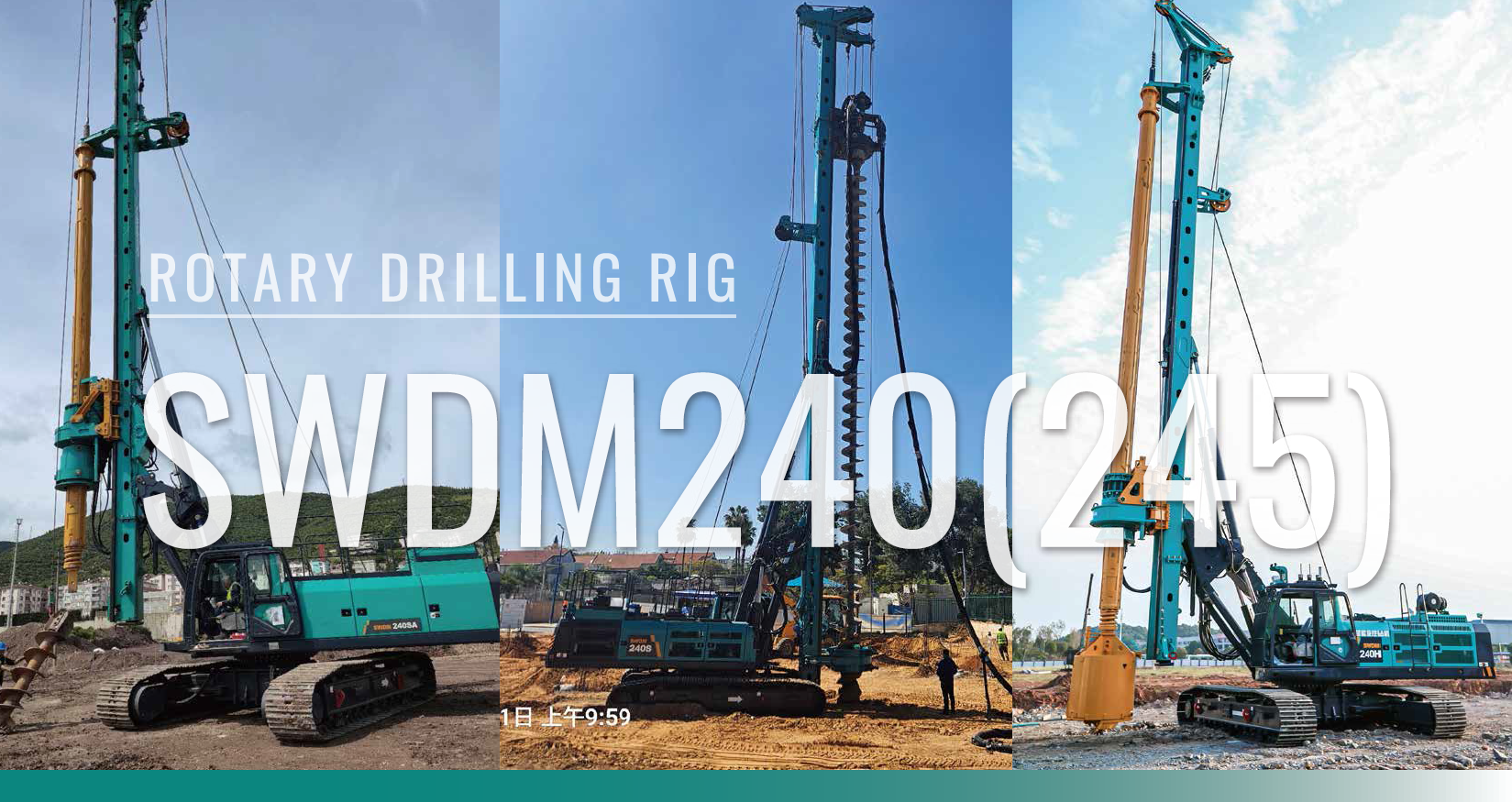

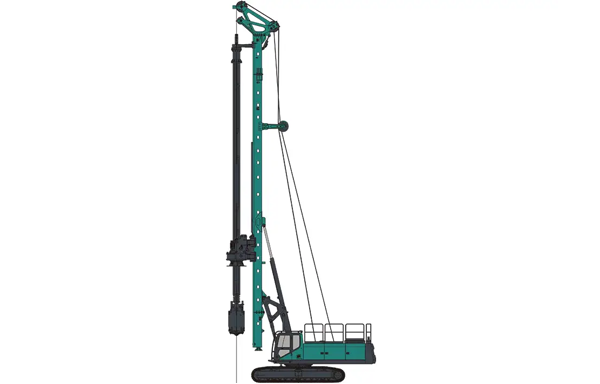

Sunward SWDM240 (245) Rotary Drilling Rig
- Max. Torque: 248 kNm
- Max. Depth: 71 m
- Max. Drilling Diameter: 2000 mm
- Winch / Cylinder Crowd System
- CFA
The Sunward SWDM240 (SWDM245) rotary drilling rig is purpose-built for demanding foundation works requiring higher torque, deeper drilling capacity, and enhanced stability. The rig offers maximum torque of 248 kNm, supporting efficient large-diameter piling and challenging geotechnical conditions. It achieves a maximum drilling depth of up to 75 m with a maximum drilling diameter of up to 2,000 mm for CCS and up to 1,800 for WCS.
Supporting CFA and LDP drilling methods, the SWDM240/245 combines a high-strength mast, reinforced chassis, and advanced hydraulic control system for consistent drilling accuracy and load distribution. Premium components and an efficient powertrain reduce fuel consumption and operating costs, making it well suited for heavy civil and infrastructure applications.
- Max. drilling diameter:2000/1800 mm
- Max. drilling depth:71 m
- Max. torque:248 kNm
- Rotary rotation speed:6-28 rpm
- Engine model:Cummins L9
- Engine Stage III:277 kW @ 2100 rpm
- Engine Stage V:252 kW @ 1800 rpm
- Main winch:280 kN, 72 m/min
- Auxiliary winch:80 kN, 55 m/min
- Kelly Bar Locking / Friction:JS440 / MZ440
- Width ret/ext crawlers:3000/4500 mm
- Max. height:23.4 m
- Operating weight:77 t
