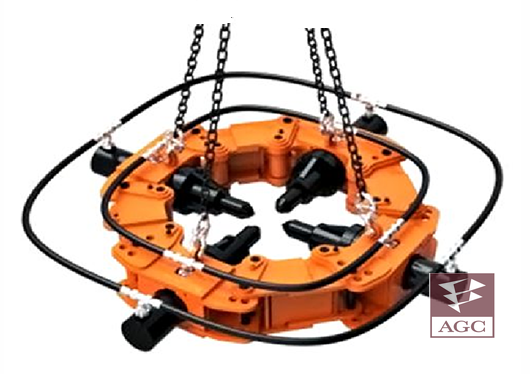

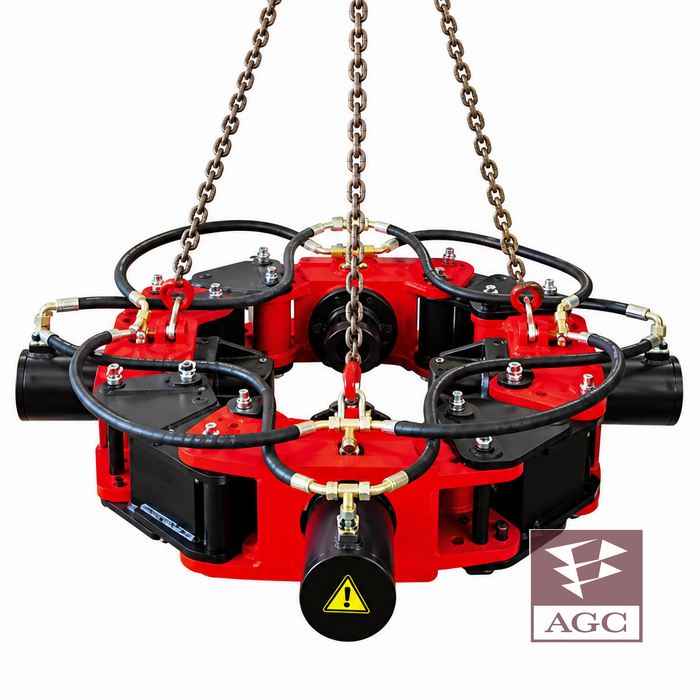

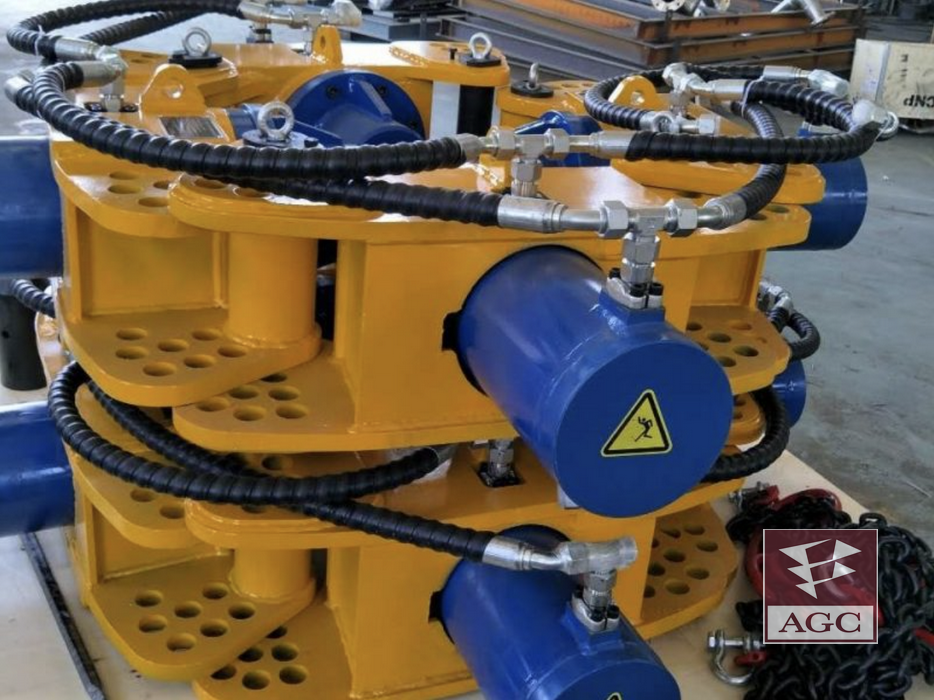

SP500 Pile Breaker for Square Piles
SP500 Pile Breaker is a system for cutting the top part of square concrete piles.
A suitable crane or excavator is required.
- Range of Pile size (mm): 250 – 500 mm
- Productivity in 8 hours: 100 – 120 piles
- Supporting excavator: 15 t
SP500 Pile Breaker is a system for cutting the top part of square concrete piles.
It can cut square concrete piles with side lengths from 250 to 500 mm.
Each module includes a separate cylinder and Breaker Rod. Hydraulic pressure drives the oil cylinder and rod to crush the pile.
- Model:SP500
- Range of Pile size:250 - 500 mm
- Productivity in 8 hours:100 - 120 piles
- Necessary excavator:16 - 20 t
- One-piece module weight:200 kg
- One-piece module size:595 X 980 X 275 mm
- Operating weight:2 t
- Work status dimensions:1710 X 1710 X 250 mm
