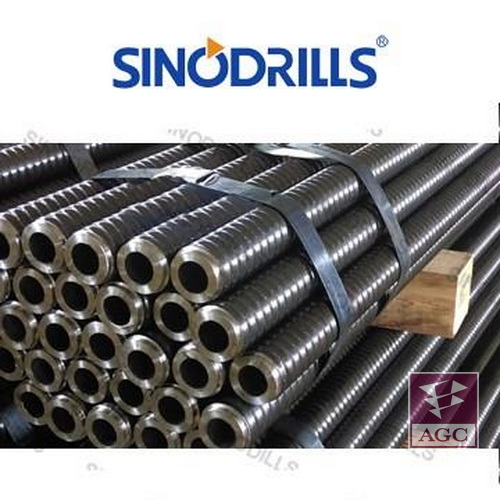

Sinodrills T40-16 Anchor Bar
- Materials comply with G30.18, ASTM 615, and ASTM A123/A153 standards.
-
Size: T40-16
-
O.D.: 40 mm
-
I.D.: 16 mm
-
Ultimate Load: 660 kN
-
Yield Load: 525 kN
-
Weight: 7,1 kg/meter
-
Thread direction: Left hand / Right hand
Sinodrills T40-16 Anchor Bar.
Materials comply with G30.18, ASTM 615, and ASTM A123/A153 standards.
T thread Bars are part of the Self Drilling Anchor system Sinodrills. This is a hollow anchor bar that allows drilling, anchoring and grouting in a single operation.
The length of the bars is determined when ordering and depends on the operating conditions and the type of equipment used.
- Size:T40-16
- O.D.:40 mm
- I.D.:16 mm
- Ultimate Load:660 kN
- Yield Load:525 kN
- Weight:7,1 kg/meter
- Thread direction:Left hand / Right hand
