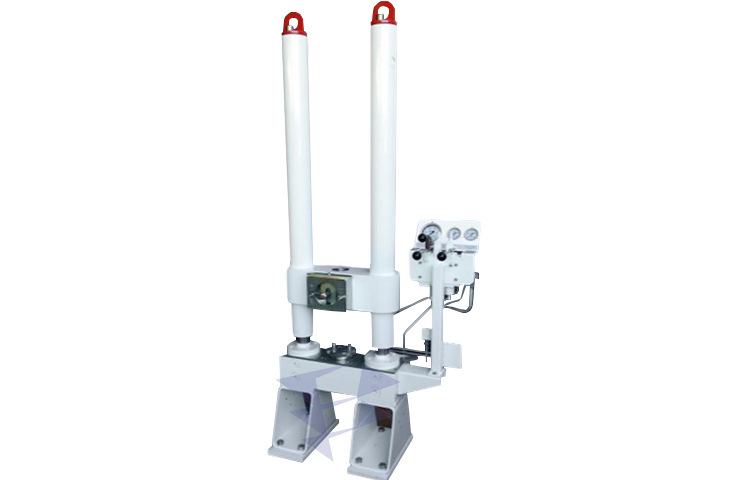

The Geomil Equipment Fox-200 stand-alone CPT
system is a versatile unit designed to be used in a wide

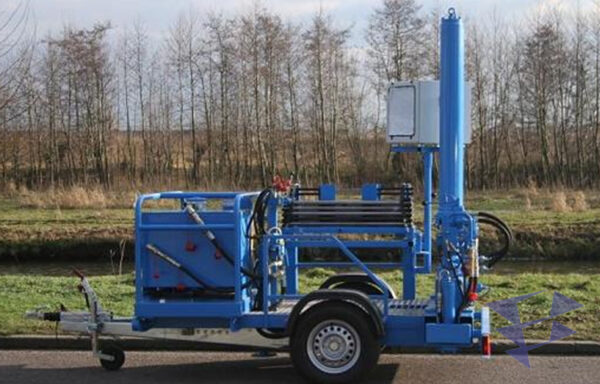

range of applications. Detachable mounting supports
allow the system to be placed on any base, varying
from a steel skid to a truck platform, or an excavator to
a jack-up platform or barge.
Main characteristics of the Fox-200:
• maximum 200 kN thrust capacity
• maximum 200 kN pulling capacity
• two vertical hydraulic cylinders, stroke 1150 mm
• solid bridge connecting the cylinders, suitable for
either hydraulic or mechanical push/pull clamp
• hydraulic control unit, mounted on a console next
to the cylinders
• guiding tube assembly with spring loaded locking
system
• 15-25 mm/s calibrated speed for CPT testing
• 140 mm/s max. upward unloaded speed
• 140 mm/s max. downward unloaded speed
• hydraulic catching clamp integrated in foundation
beam, essential for over water operations or when
carrying out CPT’s in very weak soils
• dimensions: 2 490 x 650 x 1 290 mm (H x W x D)
• weight: 640 kg
The Fox-200 is hydraulically powered by a separate
power pack, driven by a Hatz Silentpack diesel engine.
The complete power pack is built-in in a ridged
framework, resulting in a robust unit and allowing easy
transport by crane or forklift
