Domed Anchor Plate
Domed Anchor Plate is used together with Thread Bars as parts of the High-Strength Thread Anchor Systems.
The Domed Anchor Plate is of high quality and precision manufacturing and is fully compatible with the thread bars and nuts of the corresponding diameter.
The Domed Anchor Plate is a critical component that seamlessly integrates into the anchor system, taking on enormous loads and effectively distributing them over the surface.

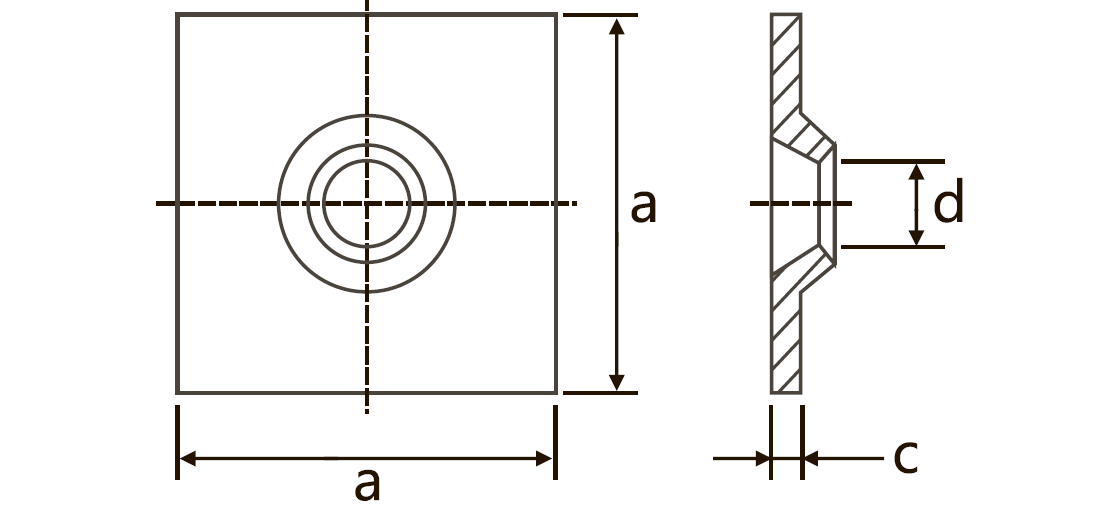

| Diam, mm | a (mm) | c (mm) | Material | Weight (kg) |
| 15 | 100 | 8 | Q235 | 0,60 |
| 20 | 100 | 10 | Q235 | 0,75 |
| 25 | 150 | 12 | Q235 | 2,00 |
| 32 | 180 | 15 | Q235 | 3,50 |
Domed Anchor Plates are used together with Thread Bars and Nuts as parts of the High-Strength Thread Anchor Systems.
The Domed Anchor Plate is of high quality and precision manufacturing and is fully compatible with the thread bars and nuts of the corresponding diameter.
The Domed Anchor Plate is a critical component that seamlessly integrates into the anchor system, taking on enormous loads and effectively distributing them over the surface.
These systems are used in Post-Tensioning, Formwork, Geotechnical, Ground engineering, Mining, Tunnelling, Soil Nailing, Slope Protection, and Retaining Structures.
Depending on the project requirements, we supply Thread Bars and Accessories of different size:
Diameter: 15, 20, 25, 28, 32, 36, 40, 5,0 63.5, 75 mm.
Grade: 500/630; 670/800; 830/1030; 930/1080; 1080/1230 MPa.
Materials comply with G30.18, ASTM 615, ASTM A123/A153 and GB/T 19001-2016/ISO 9001:2015 standards.
Corrosion Protection:
Black or plain: Standard coating
Coating: galvanized(on request)
Coating: epoxy coating(on request)
