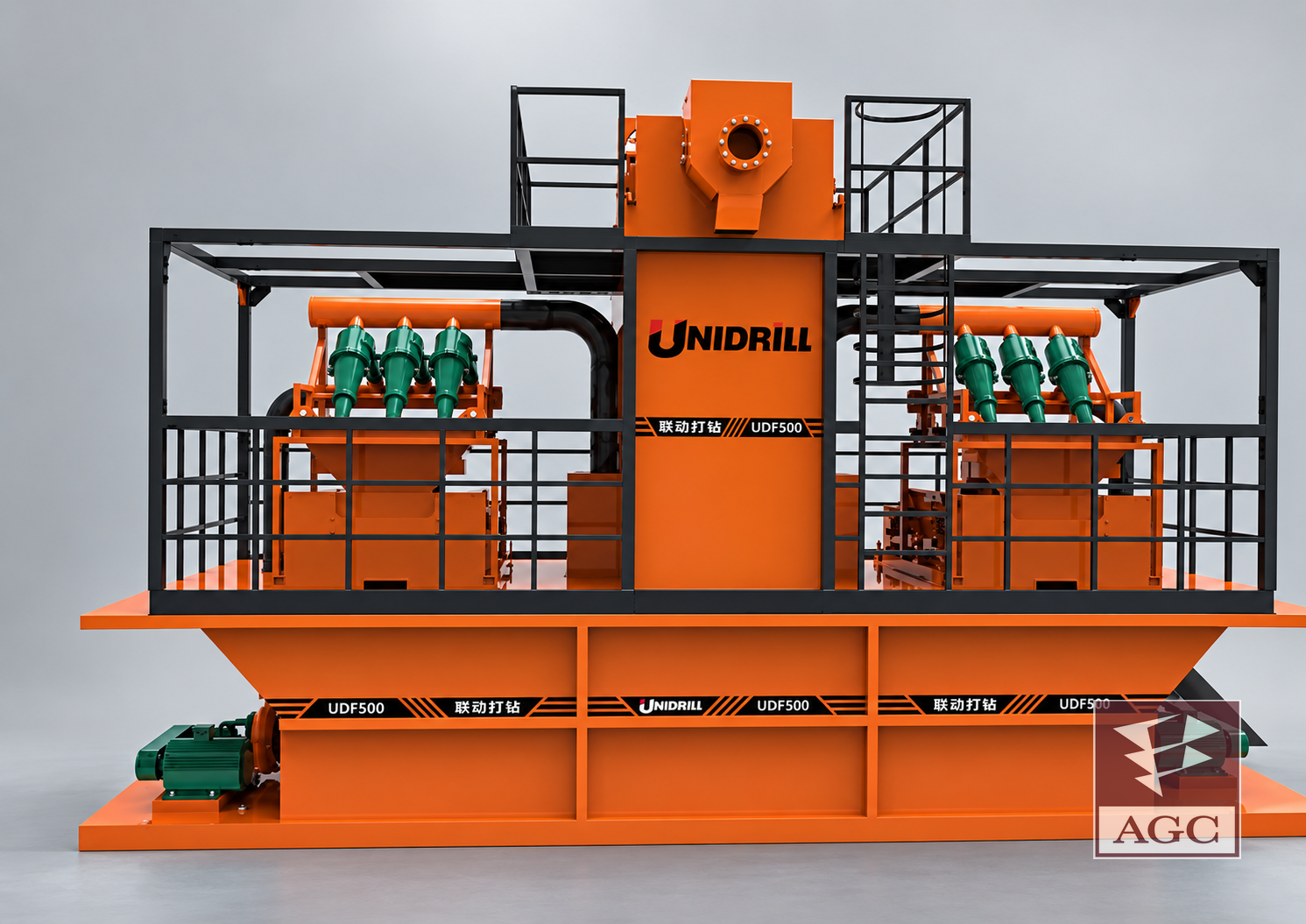

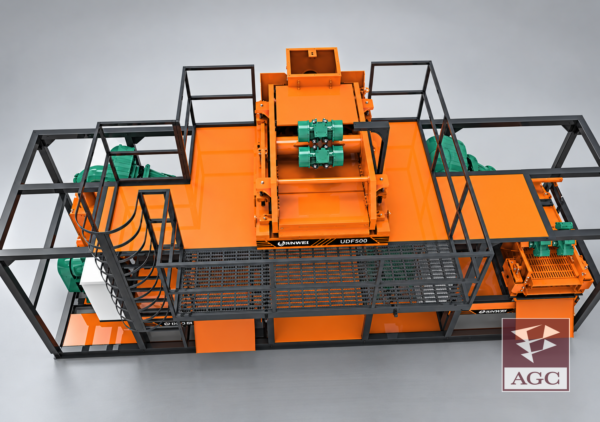

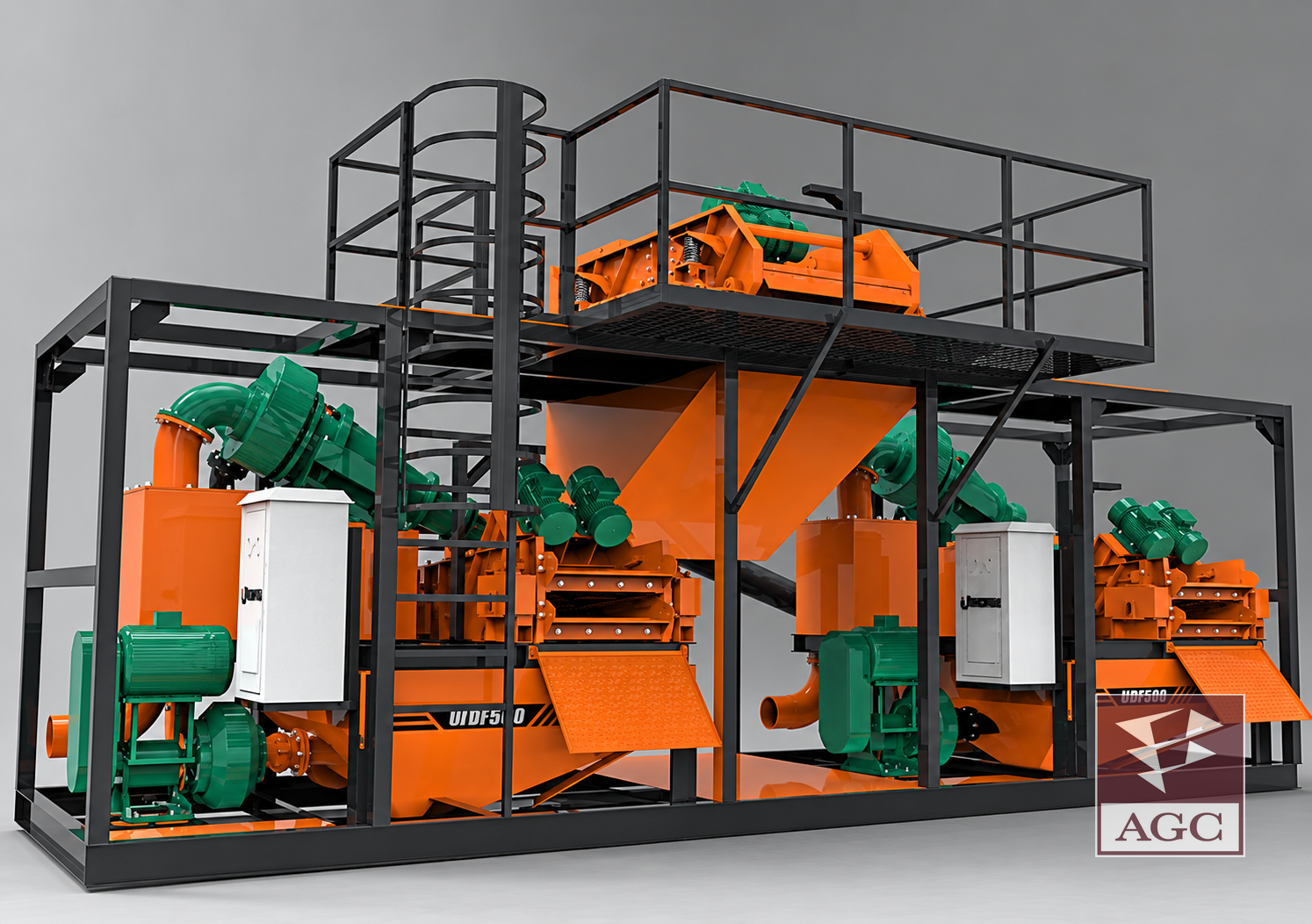

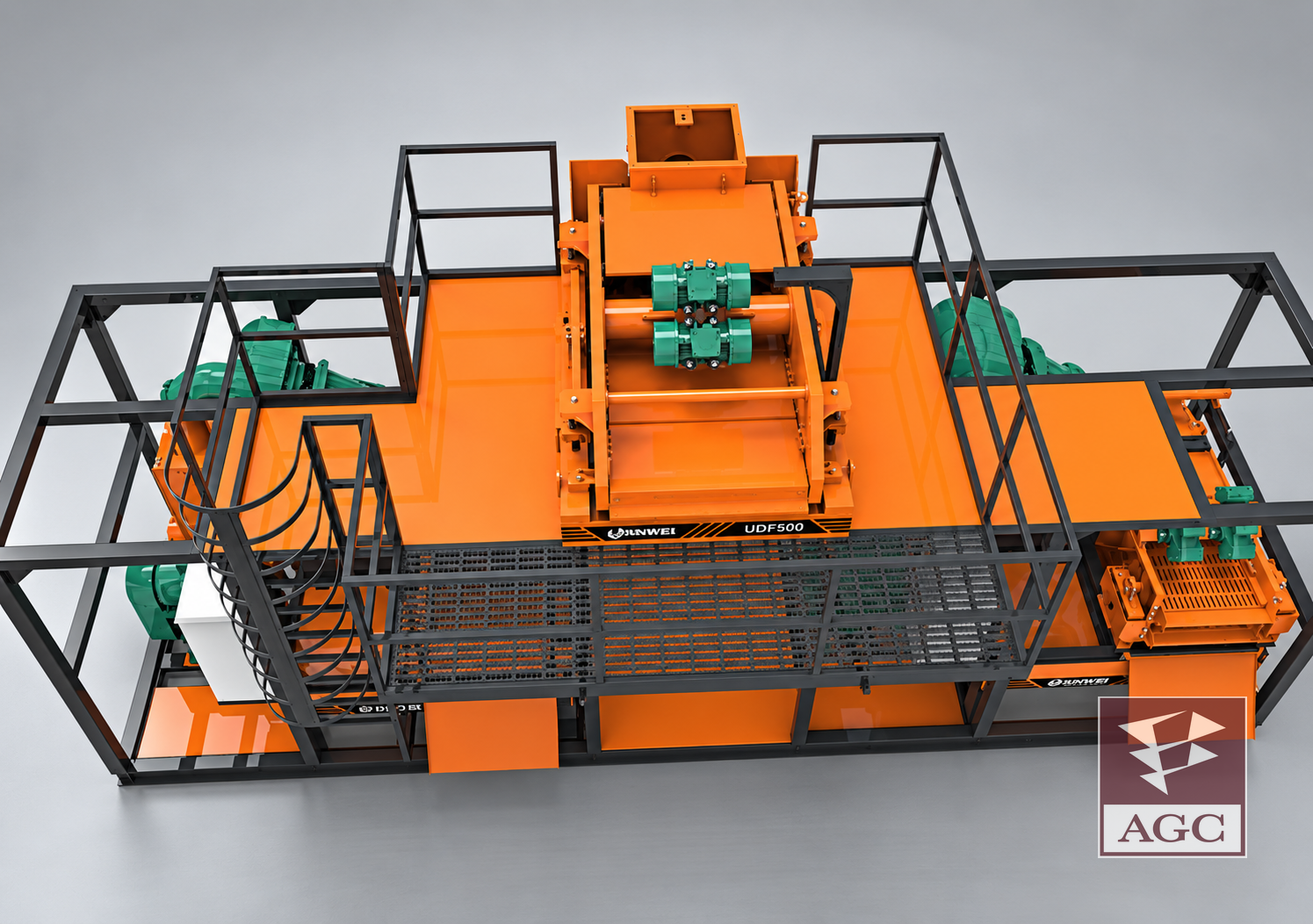

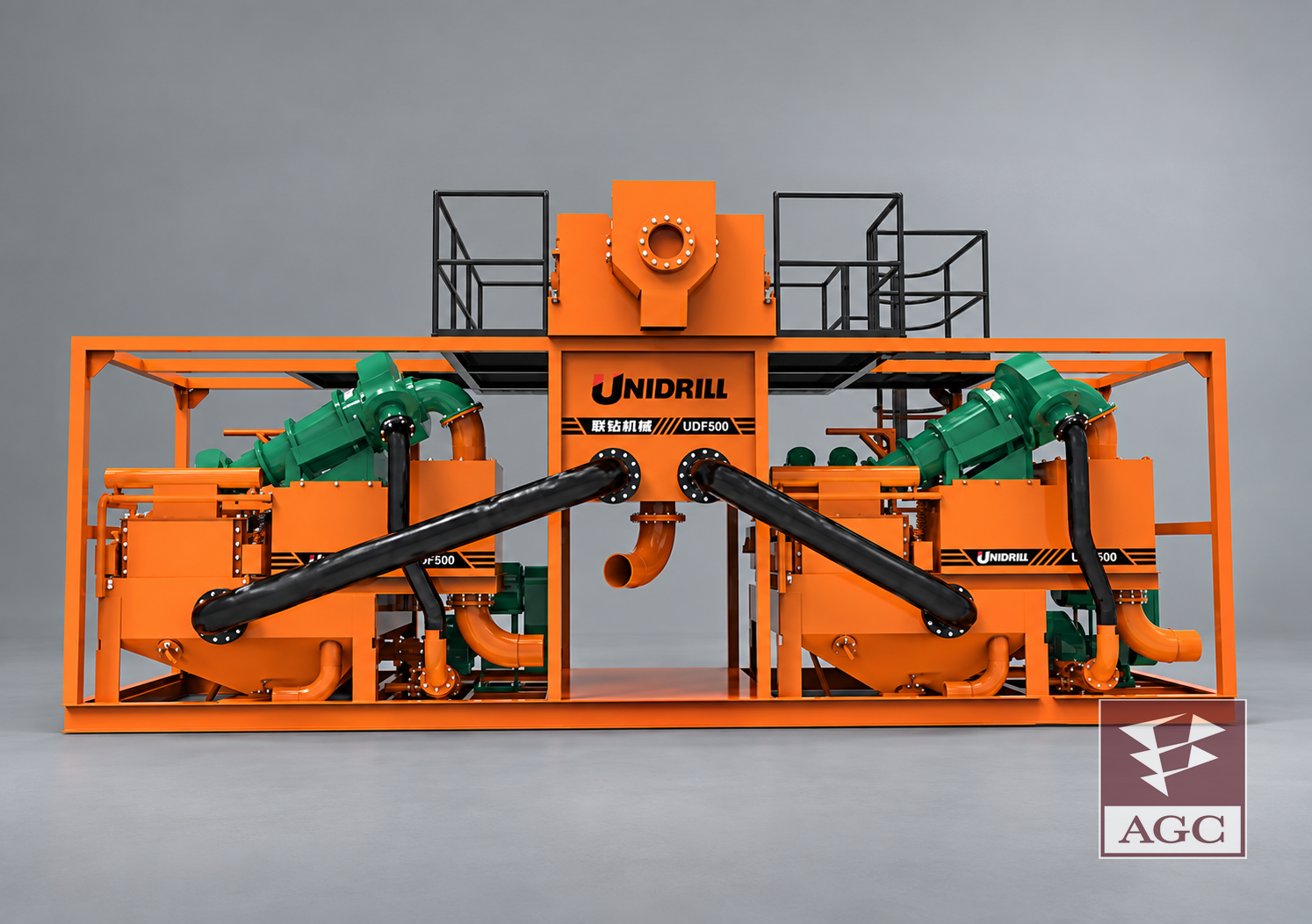

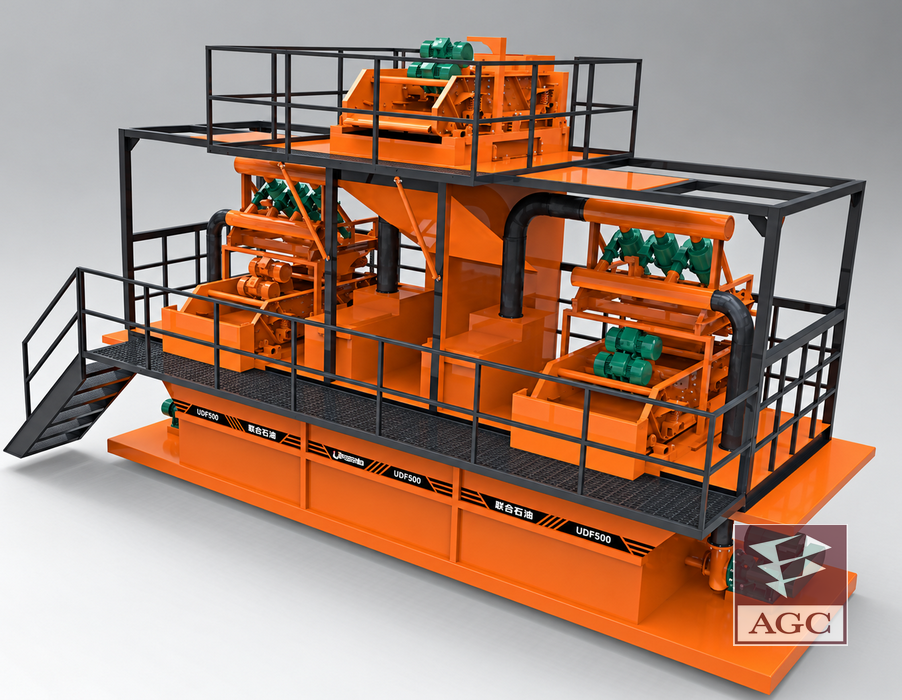

Desander UDF-500

UDF-500 Desander Plant is designed for efficient slurry treatment and recycling in medium- and large-scale foundation engineering projects such as bored piling, diaphragm wall construction and shield tunnelling.

It effectively separates sand and solids from drilling mud, improving drilling efficiency and reducing material consumption and operating costs.

The system ensures stable slurry characteristics, maintains continuous operation under challenging operating conditions and supports environmentally friendly construction methods.

Feature:

■ High mud handling capacity; sand can be removed efficiently

■ Oscillating screen has many advantages, such as easy operation, low trouble rate, and convenient installation and maintenance

■ Slagcharge screened by the advanced straight-line oscillating system is effectively dewatered

■ Adjustable vibrating force, angle, and mesh size of the oscillating screen enable the equipment to possess high screening efficiency in all kinds of strata

■ The high screening efficiency of the machine can excellently support drillers to raise bore and advance in different strata

■ Energy-saving efficiency is significant since the power consumption of the oscillating motor is low

■ Low operating noise of the oscillating screen is favourable for improving working conditions

■ Abrasion- and corrosion-resistant slurry pump has many advantages, such as advanced centrifugal design, optimal structure, stable operation and convenient maintenance

■ Thick, abrasion-resisting parts and specially designed bracket enable the pump to convey corrosive and abrasive slurry with high density

■ Hydraulic cyclone with advanced structural technology can efficiently separate sand from slurry. Moreover, it features lightweight, corrosion- and abrasion-resistant materials, so it can work stably in the worst conditions without maintenance

■ Specially designed automatic liquid-level balancing device can not only keep the liquid level of the slurry reservoir stable, but also realize the reprocessing of mud, so the purification quality can be further enhanced

■ Unique recoiling device can prevent the slurry reservoir from silting and flooding in order to ensure the machine works smoothly without maintenance for a long time
