Desander UDF-200
UDF-200 Compact Desander Plant
Slurry feed capacity 200 m³/h
Cut point ≥70μm
Weight 5.400 kg

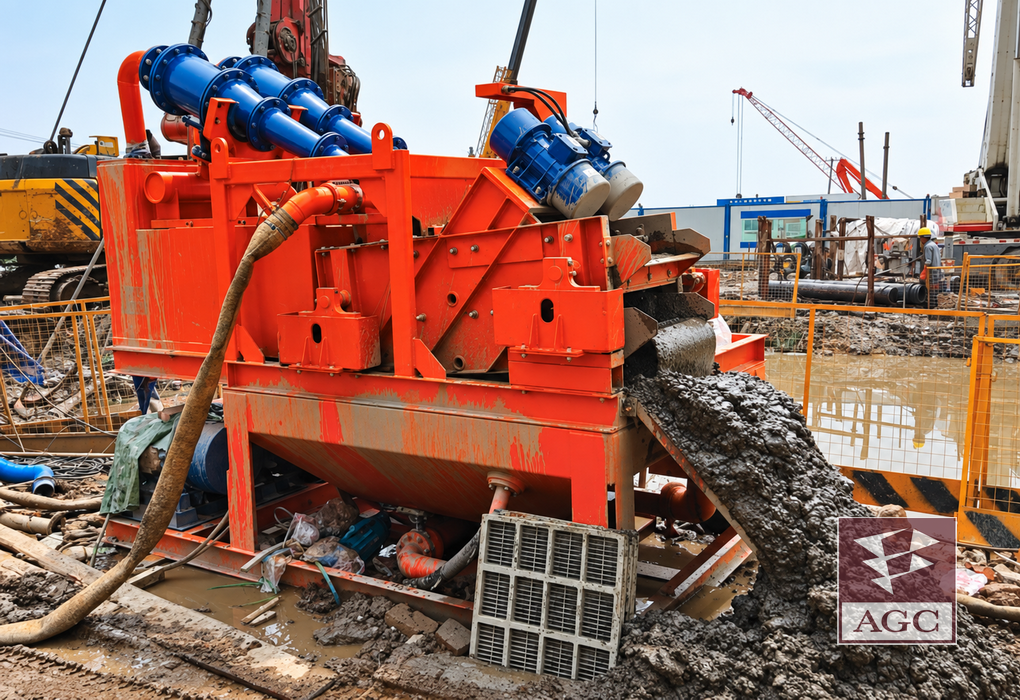

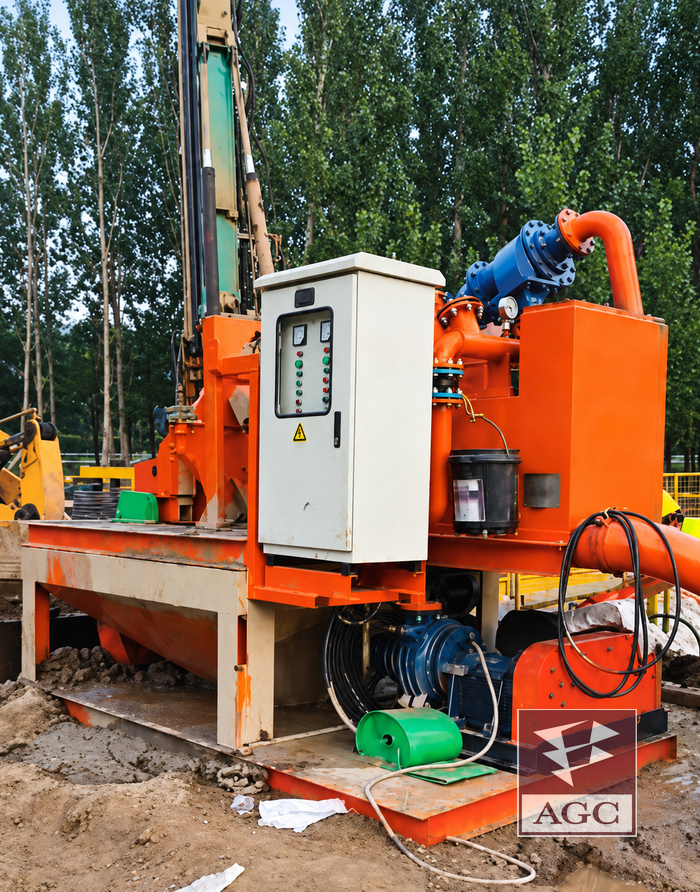

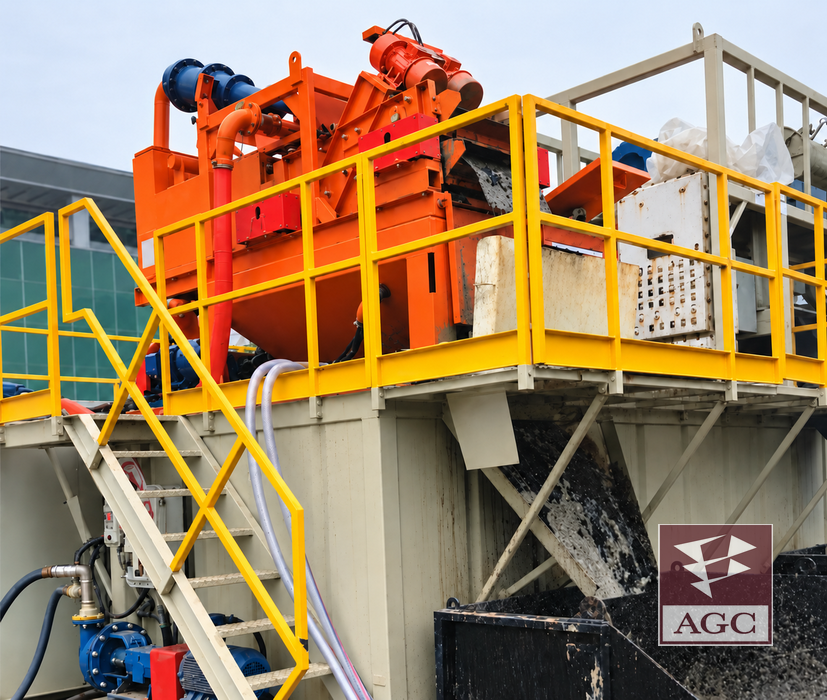

UDF-200 Desander Plant is designed for efficient slurry treatment and recycling in medium-scale foundation engineering projects such as bored piling, diaphragm wall construction and shield tunnelling.
It effectively separates sand and solids from drilling mud, improving drilling efficiency and reducing material consumption and operating costs.
The system ensures stable slurry characteristics and maintains continuous operation under challenging operating conditions.
Feature:
■ High-Efficiency desanding system
■ Advanced hydrocyclone system for effective sand removal
■ High screening efficiency in various soil conditions
■ Continuous slurry recycling for improved drilling efficiency
■ Automatic liquid level control for stable operation
■ Durability and energy saving
■ Wear-resistant slurry pump for abrasive environments
■ Low power consumption and reduced operating cost
■ Easy maintenance with low failure rate
- Slurry feed capacity, m³/h:200
- Max. feeding particle size:5
- Underflow cyclone diameter:50 - 65
- Cut point, μm:70
- Slurry Pump Power, kW:45
- Vibration Motor Power, kW:1,5 x 2 pcs
- Voltage/Frequency:380 V / 50 Hz
- Total Power, kW:48
- Coarse sieve panel quantity:3
- Micro-fine panel quantity:3
- Inlet diameter (inch):6
- Outlet diameter (inch):10
- Dimension:3800 x 2300 x 2960 mm
- Weight:5400 kg
