Coupler
Couplers are used together with Thread Bars as parts of the High-Strength Thread Anchor Systems.
The Coupler is manufactured with high-quality and precision, and is fully compatible with the thread bars of the corresponding diameter.
The Coupler is a critical component of the anchor system, serving the crucial function of extending the overall length of the anchor bar.
Coupler provides a strong and secure threaded connection, allowing multiple sections of thread anchor bar to be connected.

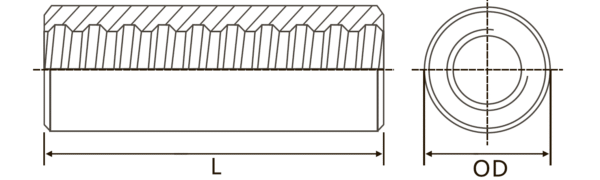

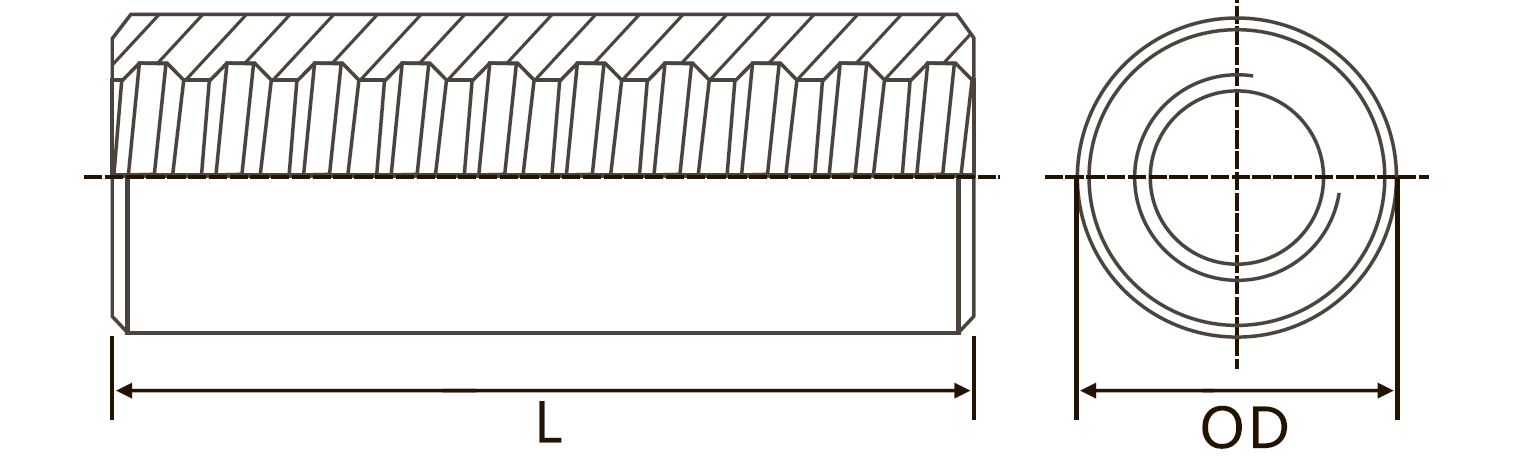

| Diam, mm | OD (mm) | L (mm) | Weight (kg) |
| 15 | 38 | 110 | 0,80 |
| 20 | 38 | 110 | 0,70 |
| 25 | 50 | 132 | 1,35 |
| 32 | 60 | 168 | 2,40 |
| 36 | 70 | 200 | 3,60 |
| 40 | 75 | 220 | 5,20 |
| 50 | 90 | 270 | 9,80 |
| 63,5 | 102 | 260 | 10,22 |
| 75 | 110 | 280 | 11,19 |
Couplers are used together with Thread Bars as parts of the High-Strength Thread Anchor Systems.
The Coupler is manufactured with high-quality and precision, and is fully compatible with the thread bars of the corresponding diameter.
The Coupler is a critical component of the anchor system, serving the crucial function of extending the overall length of the anchor bar.
Coupler provides a strong and secure threaded connection, allowing multiple sections of thread anchor bar to be connected.
These systems are used in Post-Tensioning, Formwork, Geotechnical, Ground engineering, Mining, Tunnelling, Soil Nailing, Slope Protection, and Retaining Structures.
Depending on the project requirements, we supply Thread Bars and Accessories of different size:
Diameter: 15, 20, 25, 28, 32, 36, 40, 5,0 63.5, 75 mm.
Grade: 500/630; 670/800; 830/1030; 930/1080; 1080/1230 MPa.
Materials comply with G30.18, ASTM 615, ASTM A123/A153 and GB/T 19001-2016/ISO 9001:2015 standards.
Corrosion Protection:
Black or plain: Standard coating
Coating: galvanized(on request)
Coating: epoxy coating(on request)
