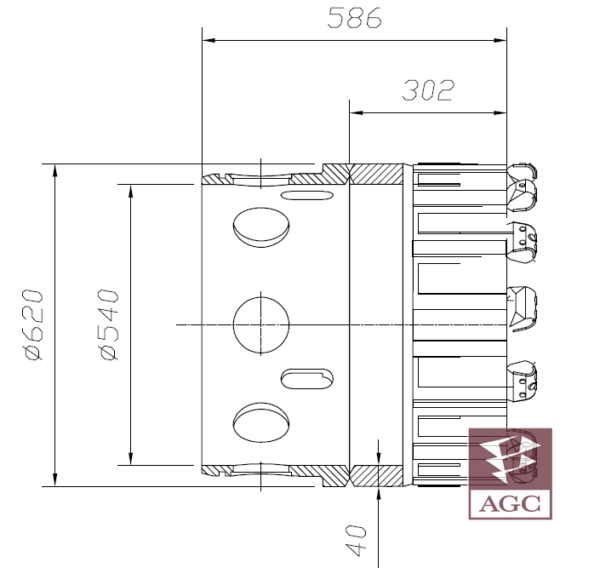

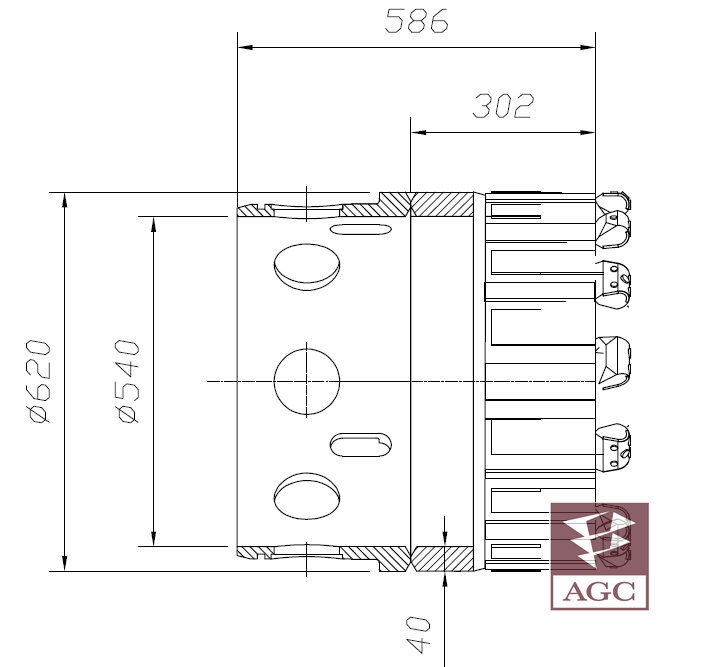

Casing Shoe 620 mm
Casing diameter 620 mm
Welded or easily removable teeth WS39
Thickness 40 mm
Standart length 586 mm, other length is also available
Casing Shoe 620 mm is used in conjunction with casing 620 mm as a leading section and serves to penetrate the ground.

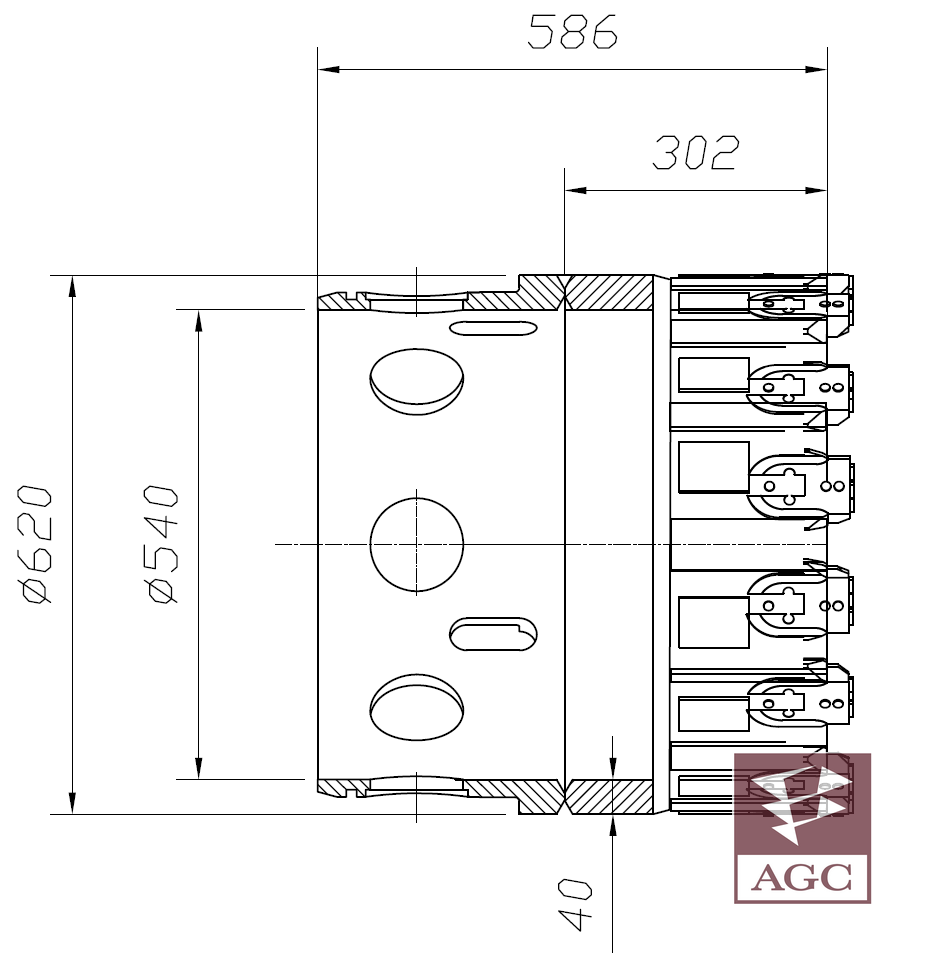

Available with welded or easily removable teeth WS39.
The standard working length of the Casing Shoe is about 0.5 m. It is also possible to supply Casing Shoes of 1, 2 m and any other length, both solid and double-walled.
- Casing diameter:620 mm
- Casing Screws numbers:8
- Standard length:586 mm
- Teeth type:Welded or WS39
- Weight:269 kg
