Casing diameter | 800 mm |
Length | 1 455 mm |
Weight | 725-785 kg |

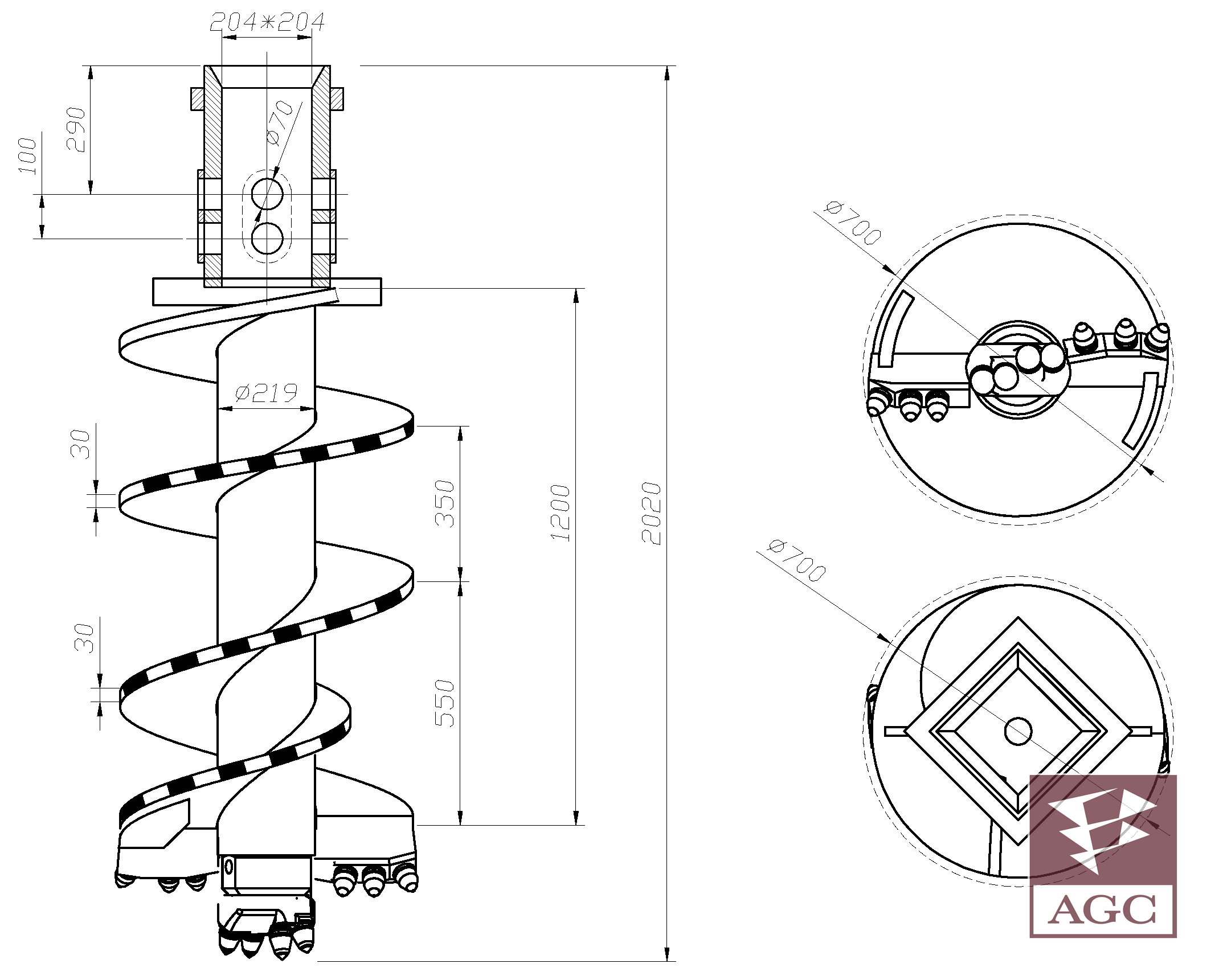

Auger, 700 mm, is designed for drilling various types of non-watered soils. It consists of an auger part (a pipe with a flange), a burner, and a connecting part. Depending on the type of soil, the bit part of the auger has different types of teeth and/or cutters in different combinations – a simple non-rock bit, a flat cutter, a round rock cutter, and a rocky bit. Parts of the auger subject to intense wear and stress are protected by additional structural elements or wear-resistant steel.
Модель/Масса | |
SB | 725 kg |
SB-2 | 760 kg |
SBF-K | 770 kg |
SBF-2K | 785 kg |
